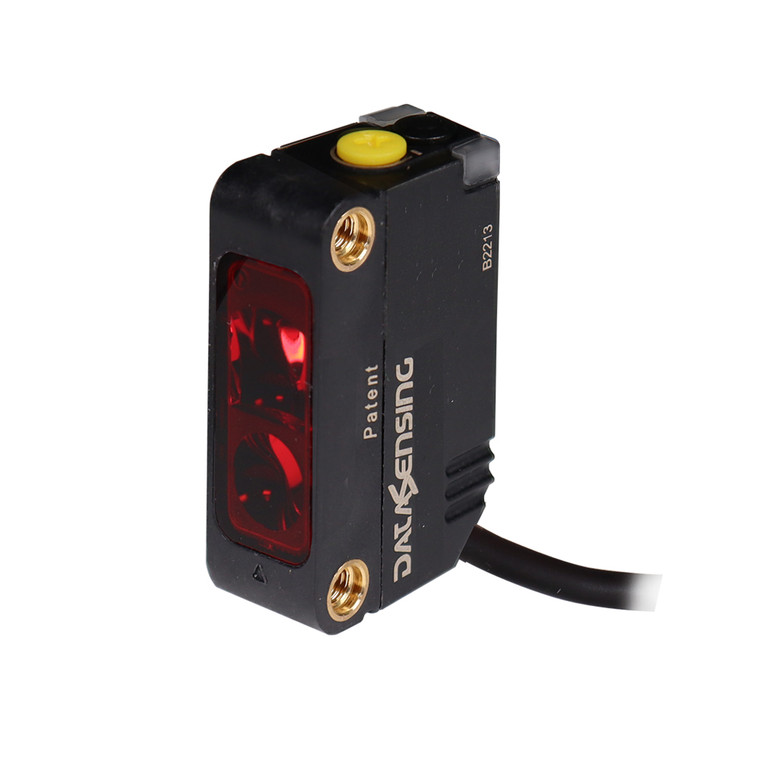

Datasensing Red LED emission Diffused long distance 1m single trimmer Dark Output NPN Cable
Datasensing
$63.11
The Datasensing Red LED Emission Diffused Long Distance 1m Single Trimmer Dark Output NPN Cable is a cutting-edge sensor designed for precision and reliability. Featuring a bright red LED emission, this sensor excels in detecting shiny and clear objects with its advanced background suppression functions. It offers a diffuse proximity sensing capability up to 100 cm and background suppression up to 800 mm, making it ideal for various applications.
This model is equipped with a single trimmer for sensitivity adjustment, allowing for precise control with a 1-turn trimmer. It operates on a diffuse beam principle, with a nominal sensing distance of 1 meter and no blind zone, ensuring accurate detection even in challenging environments. The sensor is housed in a rugged IP67 plastic miniature case, providing excellent protection against dust and water ingress.
With state-of-the-art IO-Link connectivity, this sensor supports extended Smart Tasks, enhancing its versatility and integration into complex systems. It features a 2-meter cable connection and is compatible with M8 connectors for easy installation. The sensor's robust design includes short-circuit and reverse polarity protection, ensuring reliable performance under various conditions.
The Datasensing Red LED Emission Diffused Long Distance Sensor is engineered to withstand shocks and vibrations, with EMC compatibility according to EN 60947-5-2 standards. Its compact dimensions of 11x31x19 mm make it suitable for space-constrained applications. Operating efficiently within a temperature range of -25°C to 55°C, this sensor is a reliable choice for industrial automation and control systems.
- Nominal sensing distance:
- 1m
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0mm
- Function Principle:
- Diffuse beam
- Notes:
- white target Kodak 90% 400 x 400mm
- Optic position:
- Radial 90°
- Functions:
- Diffuse beam
- Output type:
- NPN Don
- Output Function:
- Don
- Switching frequency:
- 1kHz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green STABILITY LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (635nm)
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- 2m cable
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
