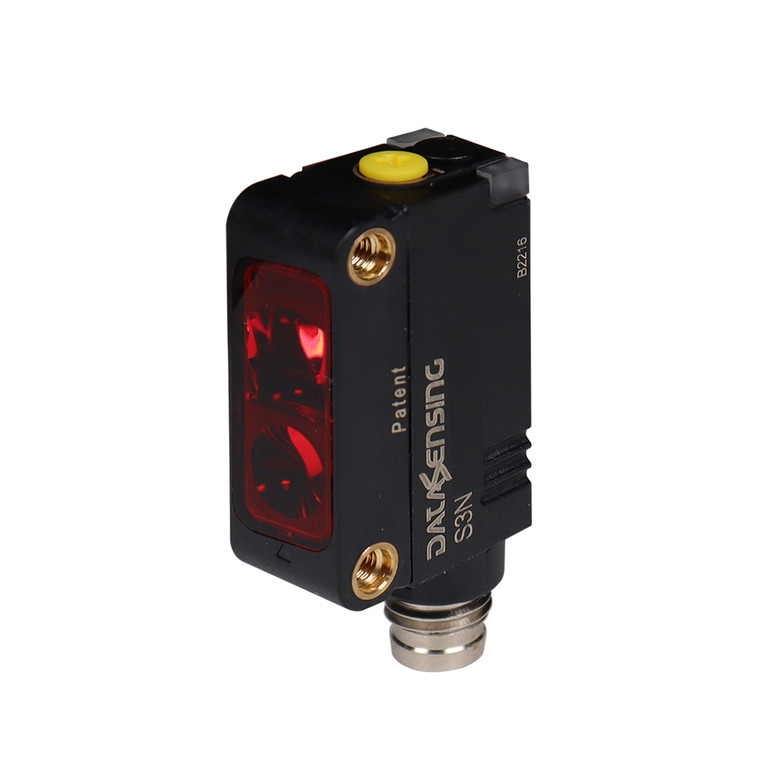

Datasensing Red LED emission Diffused long distance 1m single trimmer Dark Output PNP Connector M8 4P
Datasensing
$63.11
The Datasensing Red LED Emission Diffused Long Distance Sensor is engineered for precision and reliability in various industrial applications. With a nominal sensing distance of 1 meter and a sensitivity adjustment via a single turn trimmer, this sensor excels in detecting shiny and clear objects with ease. Its diffuse beam function ensures accurate proximity detection up to 100 cm, while the advanced background suppression feature can handle up to 800 mm, making it ideal for complex environments.
Equipped with a rugged IP67 plastic miniature case, this sensor is built to withstand harsh conditions, offering protection against dust and water ingress. The M8 4-pin connector ensures secure and straightforward connectivity, while the state-of-the-art IO-Link connectivity provides extended smart tasks for enhanced operational efficiency.
The sensor's robust design includes short-circuit and reverse polarity protection, ensuring reliable performance and longevity. It operates within a voltage range of 10 to 30 VDC, with a low no-load supply current of ? 35mA, making it energy-efficient. The LED indicators provide clear status updates, with a yellow OUTPUT LED and a green STABILITY LED for easy monitoring.
Constructed with high-quality materials, including a plastic polymer fiber glass reinforced housing and a PMMA active head, this sensor is designed for durability. It meets CE and cULus approvals and complies with EMC compatibility standards, ensuring it meets rigorous safety and performance criteria.
Ideal for applications requiring precise object detection and background suppression, the Datasensing Red LED Emission Diffused Long Distance Sensor is a reliable choice for enhancing automation and efficiency in your operations.
- Nominal sensing distance:
- 1m
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0mm
- Function Principle:
- Diffuse beam
- Notes:
- white target Kodak 90% 400 x 400mm
- Optic position:
- Radial 90°
- Functions:
- Diffuse beam
- Output type:
- PNP Don
- Output Function:
- Don
- Switching frequency:
- 1kHz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green STABILITY LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (635nm)
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- M8 plug 4pin
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
