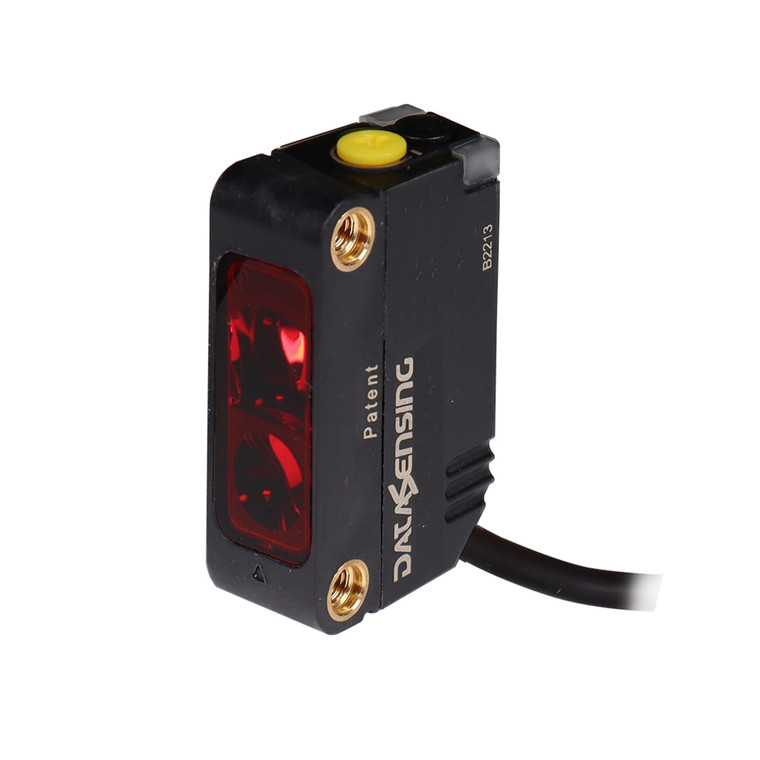

Datasensing Red LED emission Retro Reflex polarized single trimmer Light Output NPN Cable
Datasensing
$63.95
The Datasensing Red LED Emission Retro Reflex Polarized Single Trimmer Light Output NPN Cable is a cutting-edge sensor designed for precision and reliability. Featuring a bright red LED emission, this sensor excels in detecting shiny and clear objects with its advanced polarized retroreflective function. It offers a nominal sensing distance of 7 meters and a minimum sensing distance of 0.05 meters, ensuring accurate performance in various applications.
Equipped with a single turn trimmer for sensitivity adjustment, this sensor provides flexibility and ease of use. The rugged IP67 plastic miniature case, reinforced with fiber glass, ensures durability and protection against harsh environments. The sensor's state-of-the-art IO-Link connectivity allows for extended smart tasks, enhancing its functionality.
With a switching frequency of 1kHz and a response time of 500µs, the sensor delivers fast and reliable operation. It operates within a voltage range of 10 to 30VDC, with a low no-load supply current of ? 35mA. The sensor is equipped with yellow output and green stability LED indicators for easy status monitoring.
Designed with safety in mind, the sensor includes short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. Its EMC compatibility and compliance with EN 60947-5-2 standards ensure reliable performance in various industrial settings.
The sensor's compact cubic design, with dimensions of 11x31x19 mm, allows for easy integration into tight spaces. It features a 2-meter cable connection and M3 threaded holes with metal inserts for secure mounting. The operating temperature range of -25°C to 55°C and storage temperature range of -25°C to 70°C make it suitable for a wide range of environments.
Ideal for applications requiring precise object detection and background suppression, the Datasensing Red LED Emission Retro Reflex Polarized Single Trimmer Light Output NPN Cable is a versatile and reliable choice for industrial automation and sensing needs.
- Nominal sensing distance:
- 7m
- Sensitivity adjustment:
- 1 turn trimmer
- Minimum sensing distance (blind zone):
- 0,05m
- Function Principle:
- Polarized retroreflective
- Notes:
- On R5 reflector
- Optic position:
- Radial 90°
- Functions:
- Polarized retroreflective
- Output type:
- NPN Lon
- Output Function:
- Lon
- Switching frequency:
- 1kHz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35mA
- Load current:
- ?100mA
- Leakage current:
- ? 300 ?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- yellow OUTPUT LED, green STABILITY LED
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (635nm)
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- 0,1µF @Vmax - 1µF @Vmin:
- Yes
- Housing Material:
- Plastic Polymer Fiber Glass reinforced
- Connections:
- 2m cable
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Plug connector material:
- Metal
- shaft material:
- POM, PMMA
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Dimensions:
- 11x31x19 mm
- Operating Temperature:
- -25°C ... 55°C
- Mechanical Protection:
- IP67
