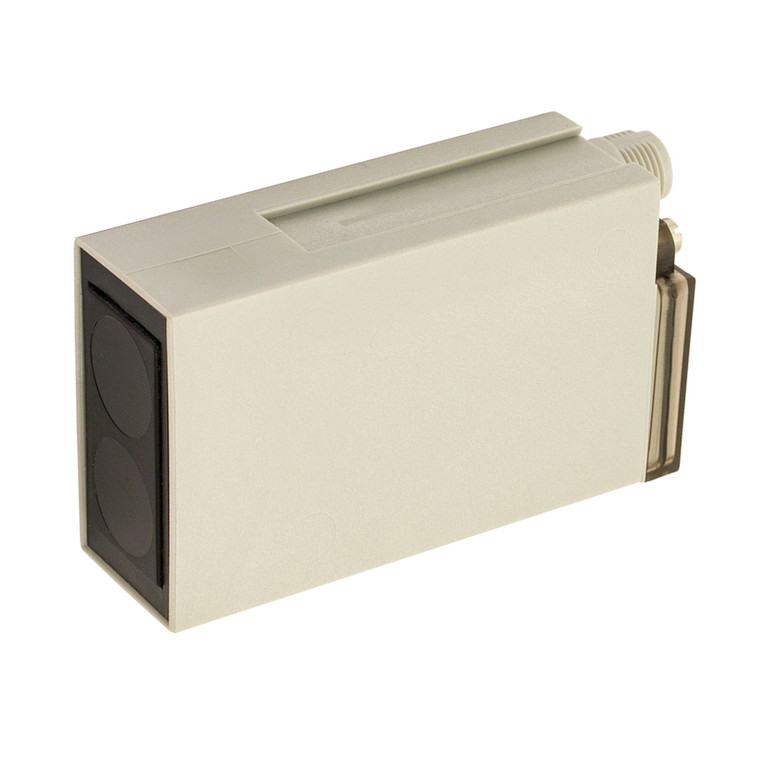

Datasensing RX6/00-3A Sensors
Datasensing
$146.27
The Datasensing RX6/00-3A Sensors are advanced photoelectric sensors designed for versatile applications. Featuring a diffuse reflection function with a nominal sensing distance of 1 meter, these sensors are ideal for long-distance detection tasks. The compact design, measuring 26x86.6x50 mm, allows for easy installation in tight spaces, while the robust PC housing ensures durability in challenging environments.
Equipped with a relay output type (SPST NO/NC) and a multifunctional DECOUT® system, the RX6/00-3A offers reliable performance with a switching frequency of 25Hz and a response time of 20ms. The sensor includes a trimmer for sensitivity adjustment, allowing precise control over detection parameters. The LED alignment indicator provides 360° visibility, with red and green LEDs indicating output status and stability, respectively.
The RX6/00-3A operates within a wide voltage range of 20...60VDC / 20...253VAC/50-60Hz, and features reverse polarity and impulsive overvoltage protection for enhanced safety. With an IP65 degree of protection, the sensor is resistant to dust and water ingress, making it suitable for various industrial settings. The package includes an ST80 mounting bracket and screws for convenient setup.
Designed to withstand temperatures from -25°C to +70°C, the RX6/00-3A is built to perform reliably in diverse conditions. Its EMC compatibility with EN 60947-5-2 and compliance with vibration and shock standards (IEC 60068-2-6 / IEC 60068-2-28) further ensure its robustness and reliability in demanding applications.
- Nominal sensing distance:
- 1m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 400 x 400mm EG=1,5
- Optic position:
- Axial
- Output type:
- Relay SPST NO/NC
- Output Function:
- NO/NC
- Switching frequency:
- 25Hz
- Response time:
- 20ms
- Operating Voltage:
- 20...60VDC /20...253VAC/50-60Hz
- No-Load supply current:
- ? 25mARMS
- Load current:
- 3A-250Vac/3A-30Vdc (750VA/90W)
- Max ripple content:
- ?10%
- LED indicators:
- Red (output status) o (alineament), Green (stability)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- ? 5000lux (incandescent lamp)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 75g
- Housing Material:
- PC
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST80 mounting bracket and screws
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
