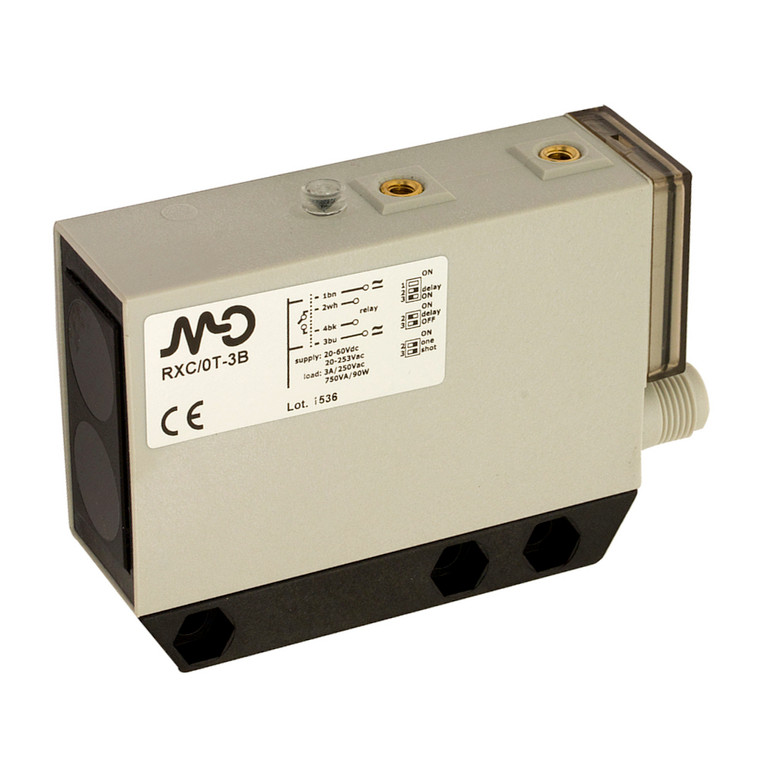

Datasensing RX8/00-1B Sensors
Datasensing
$141.73
The Datasensing RX8/00-1B Sensors offer a versatile range of models including diffuse reflection, retro-reflective, polarized, through-beam, and background suppression, making them suitable for various applications. These sensors boast high performance with a nominal sensing distance of 2 meters and compact dimensions, ensuring easy installation even in tight spaces. Equipped with a relay output or multifunctional DECOUT®, they provide flexibility with selectable NPN/PNP and NO/NC output functions. The sensors feature a timer function with delay on, delay off, and one-shot capabilities, along with a trimmer for sensitivity adjustment, allowing for precise control.
Designed for reliability, the RX8/00-1B Sensors include a switch to reduce emission for fine detection in through-beam types and an LED alignment indicator with 360° visibility for easy setup. The dual LED indicators signal stable operation and output status, ensuring optimal performance. With an M12 standard plug cable exit and options for axial and right-angle brackets, these sensors are adaptable to various mounting configurations.
Built to withstand challenging environments, the sensors operate within a temperature range of -25°C to +70°C and are protected against short circuits and reverse polarity. They are housed in durable PC material with an IP65 degree of protection, ensuring resistance to dust and water ingress. The sensors are CE and cULus approved, meeting EMC compatibility standards, and are supplied with an ST81 mounting bracket and screws for convenient installation.
- Nominal sensing distance:
- 2m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 400 x 400mm EG=1,5
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable Decout NO/NC Selectable
- Output Function:
- Decout NO/NC Selectable
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (output status) o (alineament), Green (stability)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- ? 5000lux (incandescent lamp)
- Weight:
- 90g
- Housing Material:
- PC
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST81 mounting bracket and screws
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
