Datasensing RX8/0T-3A Sensors
Datasensing
$150.85

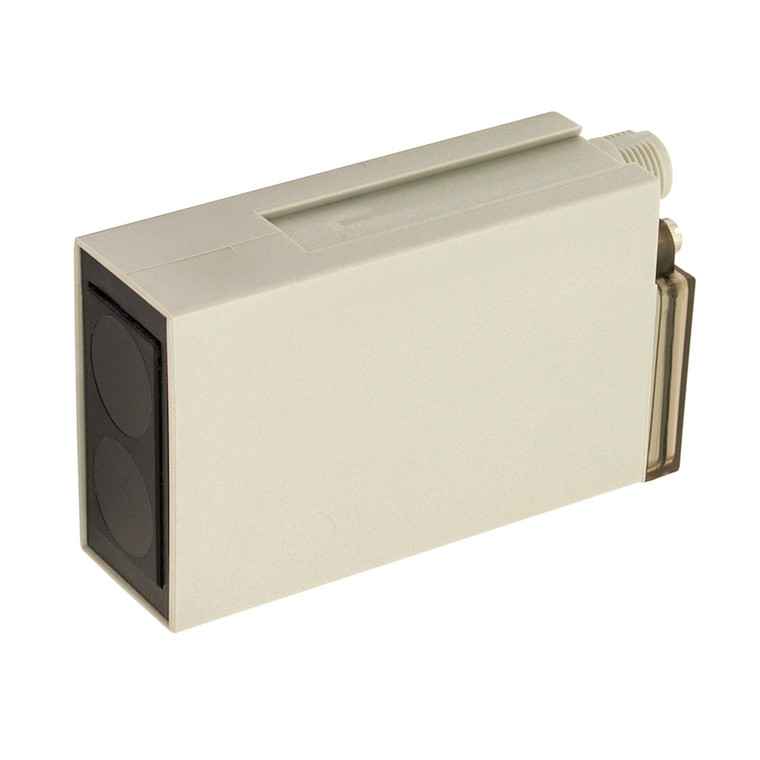

The Datasensing RX8/0T-3A Sensors are designed for high-performance photoelectric sensing with a diffuse reflection principle, offering a nominal sensing distance of 2 meters. These sensors are equipped with a relay output and multifunctional DECOUT® for versatile applications. The compact design, measuring 26x86.6x50 mm, allows for easy installation in various environments, supported by axial and right-angle brackets.
Featuring a timer function with delay on, delay off, and one-shot capabilities, the RX8/0T-3A ensures precise control with a trimmer for sensitivity adjustment. The sensor's LED alignment indicator provides 360° visibility, with red and green LEDs indicating output status and stability, respectively.
Built to withstand challenging conditions, the sensor operates within a temperature range of -25°C to +70°C and is protected against reverse polarity and impulsive overvoltage. It is housed in durable PC material with an IP65 degree of protection, ensuring reliability in industrial settings. The M12 standard plug facilitates easy connections, while the included ST80 mounting bracket and screws simplify installation.
With a switching frequency of 25Hz and a response time of 20ms, the RX8/0T-3A is ideal for applications requiring fast and accurate detection. It is compatible with a wide range of operating voltages (20...60VDC / 20...253VAC/50-60Hz) and can handle load currents up to 3A. The sensor's EMC compatibility with EN 60947-5-2 and its resistance to shocks and vibrations make it a robust choice for demanding environments.
- Nominal sensing distance:
- 2m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 400 x 400mm EG=1,5
- Optic position:
- Axial
- Output type:
- Relay SPST NO/NC
- Output Function:
- NO/NC
- Switching frequency:
- 25Hz
- Response time:
- 20ms
- Operating Voltage:
- 20...60VDC /20...253VAC/50-60Hz
- No-Load supply current:
- ? 25mARMS
- Load current:
- 3A-250Vac/3A-30Vdc (750VA/90W)
- Max ripple content:
- ?10%
- LED indicators:
- Red (output status) o (alineament), Green (stability)
- Time delay before availability:
- ?200ms
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- ? 5000lux (incandescent lamp)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 75g
- Housing Material:
- PC
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST80 mounting bracket and screws
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
