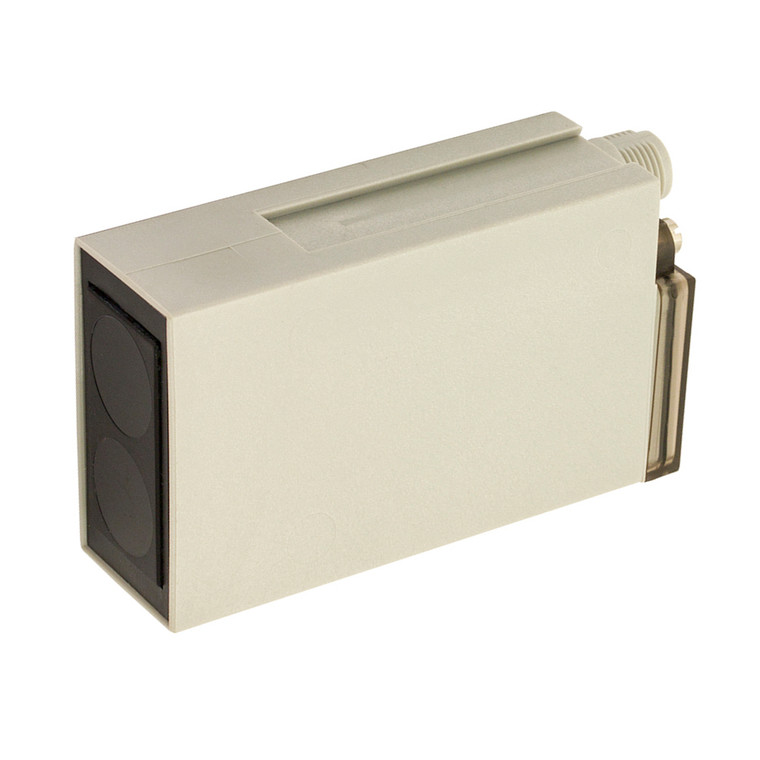

Datasensing RXP/00-1A Sensors
Datasensing
$150.85
The Datasensing RXP/00-1A Sensors are designed for high-performance applications with versatile installation options. These sensors offer various models, including diffuse reflection, retro-reflective, polarized, through-beam, and background suppression, catering to diverse sensing needs. With a nominal sensing distance of 6 meters and compact dimensions, they are ideal for space-constrained environments.
Equipped with a relay output or multifunctional DECOUT®, these sensors provide flexibility in output functions, allowing for NPN/PNP and NO/NC selection. The timer function includes delay on, delay off, and one-shot capabilities, with a trimmer for precise sensitivity adjustment. A switch is available to reduce emission for fine detection in through-beam types.
The sensors feature a 360° visible LED alignment indicator and two LED indicators for stable signal and output status. The M12 standard plug cable exit, along with axial and right-angle brackets, ensures easy and secure installation. The sensors are protected against short-circuits and reverse polarity, with a robust housing material of PC and an active head made of PMMA.
Operating within a temperature range of -25°C to +70°C, these sensors are built to withstand harsh conditions, with an IP65 degree of protection. They are CE and cULus approved, ensuring compliance with international standards. The package includes an ST80 mounting bracket and screws for convenient setup.
- Nominal sensing distance:
- 6m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial
- Output type:
- Decout NPN/PNP Selectable Decout NO/NC Selectable
- Output Function:
- Decout NO/NC Selectable
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 25mA
- Load current:
- ?100mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (output status) o (alineament), Green (stability)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- ? 10000lux (incandescent lamp)
- Weight:
- 75g
- Housing Material:
- PC
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Diameter/Dimension:
- Cubic
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST80 mounting bracket and screws
- Operating Temperature:
- - 25°C + 60°C (Without freeze)
- Mechanical Protection:
- IP65
