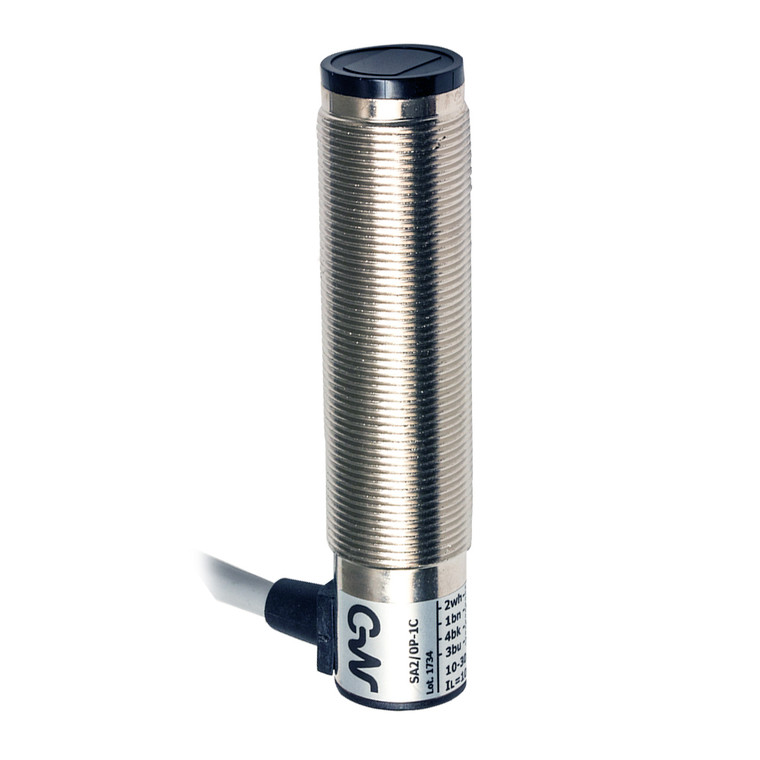

Datasensing SA2/0P-1C Sensors

The Datasensing SA2/0P-1C Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 150mm, these sensors are ideal for short-distance applications. The robust design includes a sensitivity adjustment trimmer, allowing for fine-tuning to suit various environments and targets, such as a white Kodak 90% 100 x 100mm target. Equipped with a double LED indicator for power and status output, the sensors provide clear visual feedback. The PNP output type is selectable between light and dark operation modes, offering flexibility in different applications. With a high switching frequency of 1kHz and a rapid response time of 500µs, these sensors ensure quick and accurate performance. Built to withstand challenging conditions, the SA2/0P-1C Sensors boast an IP67 protection rating, safeguarding against dust and water ingress. The nickel-plated brass housing and nylon cable exit enhance durability, while the PMMA active head material ensures reliable operation. The sensors are equipped with comprehensive electrical protections, including short-circuit and reverse polarity protection, ensuring longevity and safety. Operating within a voltage range of 10 to 30VDC, these sensors maintain a low no-load supply current of ?30mA and a load current of ?100mA. The output voltage drop is minimal at ?2V@Iload=100mA, ensuring efficient power usage. The sensors are designed to resist interference from external light sources, withstanding up to 3,000 lux from incandescent lamps and 10,000 lux from sunlight. The SA2/0P-1C Sensors come with a 2m PVC cable with a 90° exit, providing flexibility in installation. The package includes M18 x 1 nuts for secure mounting. With CE approvals and EMC compatibility per EN 60947-5-2 standards, these sensors are a reliable choice for industrial applications requiring precision and durability.
