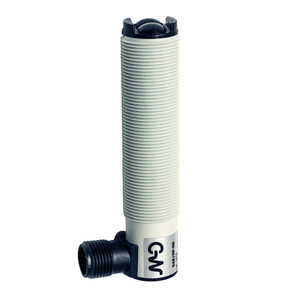

The Datasensing SA8/0P-0K Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection principle with a nominal sensing distance of 1 meter, these sensors are ideal for long-distance applications exceeding 600mm. The robust design includes a sensitivity adjustment trimmer, allowing for fine-tuning to suit various environments and targets, such as a white Kodak 90% 200 x 200mm target.
Equipped with a double LED indicator for power and status output, the sensors offer clear visual feedback. The PNP output type is selectable between light and dark operation modes, providing flexibility in different lighting conditions. With a high switching frequency of 1kHz and a rapid response time of 500µs, these sensors ensure quick and accurate detection.
Built to withstand harsh conditions, the SA8/0P-0K Sensors boast an IP67 protection rating, safeguarding against dust and water ingress. They are also equipped with comprehensive electrical protections, including short-circuit and reverse polarity protection. The sensors operate efficiently within a voltage range of 10 to 30VDC, with minimal power consumption.
Constructed with durable materials such as PBT and PMMA, and featuring a compact design with dimensions of 21.4mm x 89.8mm, these sensors are both lightweight and resilient. The M12 plug connection at a 90° angle ensures easy installation and integration into existing systems. Approved by CE and compliant with EMC standards, the Datasensing SA8/0P-0K Sensors are a reliable choice for industrial automation and control applications.
- Nominal sensing distance:
- 1m
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (long distance, >600mm)
- Notes:
- white target Kodak 90% 200 x 200mm
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 40g
- Housing Material:
- PBT / Nylon plug
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
