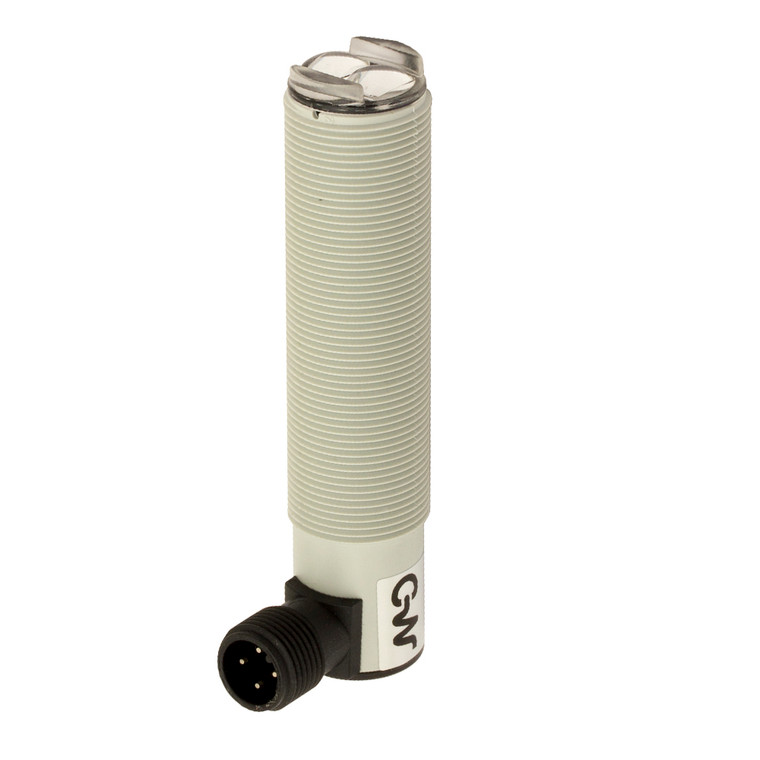

Datasensing SAT/0N-0K Sensors
Datasensing
$152.73
The Datasensing SAT/0N-0K Sensors are designed for precision and reliability in various industrial applications. These photoelectric sensors utilize diffuse reflection technology, ideal for short-distance detection up to 200mm, with a nominal sensing distance of 12mm. The sensors feature a robust NPN output with selectable light/dark operation, ensuring flexibility in diverse environments.
Equipped with a sensitivity adjustment trimmer, these sensors allow for fine-tuning to meet specific application needs. The double LED indicators provide clear status updates, with a green LED for power and a yellow LED for output status. The sensors boast a high switching frequency of 1kHz and a rapid response time of 500µs, making them suitable for fast-paced operations.
Built to withstand harsh conditions, the SAT/0N-0K Sensors offer IP67 protection, safeguarding against dust and water ingress. They are constructed with durable PBT housing and a PMMA active head, ensuring longevity and resilience. The sensors are also equipped with comprehensive electrical protections, including short-circuit and reverse polarity protection.
With a compact design measuring 21.4mm x 89.8mm and weighing just 40g, these sensors are easy to integrate into existing systems. They operate efficiently within a wide voltage range of 10 to 30VDC and maintain performance across temperatures from -25°C to +70°C. The sensors are compatible with a variety of plugs, accessories, and reflectors, enhancing their adaptability to different setups.
Approved by CE and compliant with EMC standards, the Datasensing SAT/0N-0K Sensors are a reliable choice for ensuring accurate and consistent detection in demanding industrial environments.
- Nominal sensing distance:
- 12mm
- Thermal drift of Sr:
- 10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10µA
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Green (powerON), Yellow (Status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3.000lux (incandescent lamp), 10.000lux (sunlight)
- Weight:
- 40g
- Housing Material:
- PBT / Nylon plug
- Connections:
- M12 plug 90°
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- Nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
