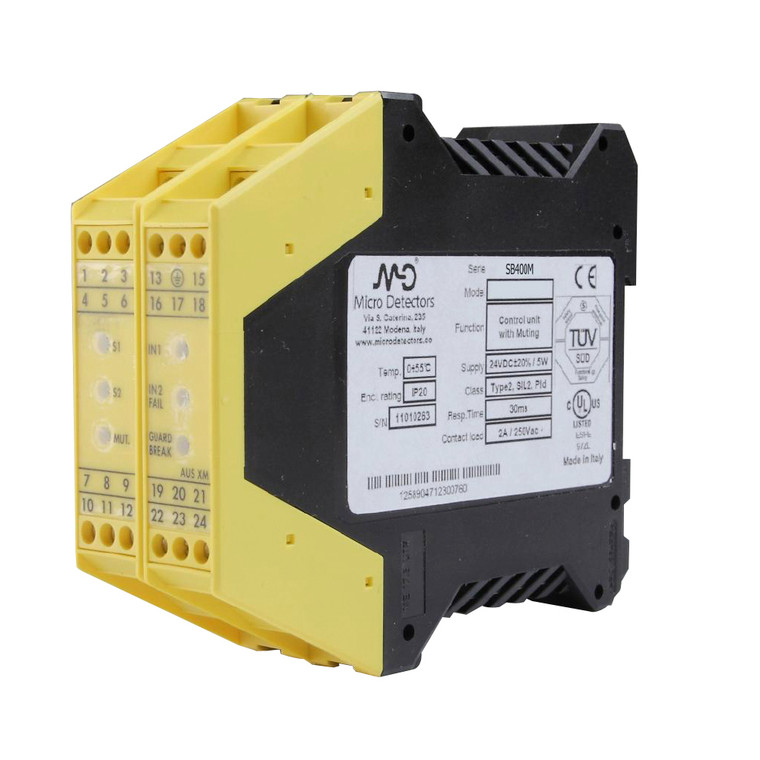

Datasensing SB400M Relay module with muting function
Datasensing
$701.18
Relay module with muting function
- Nominal sensing distance:
- According to the sensors used: LS2 up to 12m LS4 up to 20m
- Function Principle:
- Control unit
- Available functions:
- Manual/Automatic Restart, EDM, System Status, Muting, Override
- Description:
- Cat. 4 Safety Module with integrated Muting function
- Usable with:
- Safety light curtains: LS2, LS4, LP4
- Max. number of sensors connected:
- 1 x LS2/LS4 receiver
- Max. number of muting sensors:
- 2 x PNP-NO
- Muting lamp output:
- 24V - 0,5 5W
- Functions:
- Relays modules
- PL:
- d (2A@230VAC
- CFF:
- 80%
- Output type:
- 2 x relay NO (OSSD safety output) 1 x NO, 100mA, 24V (System Status)
- Response time:
- ? 20ms
- Override Time-out:
- 15 min
- Operating Voltage:
- 24Vdc ± 20%
- Load current:
- 2A @ 250V
- Cabel Length (Power Supply/Output):
- ? 100m
- Cable Length (sensors):
- ? 100m
- Power Consumption:
- ? 5W
- Connections:
- terminals
- Approvals:
- CE, cULus, TÜV
- EMC compatibility:
- According to 2014/30/EU Directive
- Degree of protection:
- IP20
- Mechanical Protection:
- IP20
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- User Manuals:
- View
