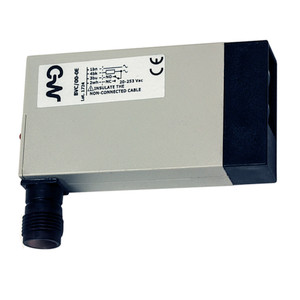

Datasensing SPH/00-0E Sensors

The Datasensing SPH/00-0E Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a nominal sensing distance of 14 meters, these sensors are equipped with a radial 90° optic position and an emitter function principle. The robust design includes a plastic connection with an M12 plug, ensuring easy installation and secure connectivity. With a thermal drift of Sr ?10% and a no-load supply current of ? 40mA, these sensors are engineered for efficiency and stability. They operate within a voltage range of 10 to 30VDC and are protected against reverse polarity and impulsive overvoltage, making them suitable for various industrial applications. The LED infrared emission at 880nm provides reliable detection, while the yellow LED indicator signals power status. The SPH/00-0E models offer side sensor adjustment on both axial and right-angle optics, with LO/DO selectable output for versatile use. They are built to withstand harsh environments, featuring an IP67 protection degree and compliance with CE and cULus standards. The sensors are also ATEX models, category 3, available upon request, ensuring safety in potentially explosive atmospheres. Constructed with durable PBT housing and a PMMA active head, these sensors are designed to endure operating temperatures from -25°C to +70°C without freezing. The compact dimensions of M18 x 1 / L = 75.7mm and a weight of 30g make them easy to integrate into existing systems. Supplied with M18 x 1 nuts, the Datasensing SPH/00-0E Sensors are a reliable choice for precise and efficient photoelectric sensing needs.
