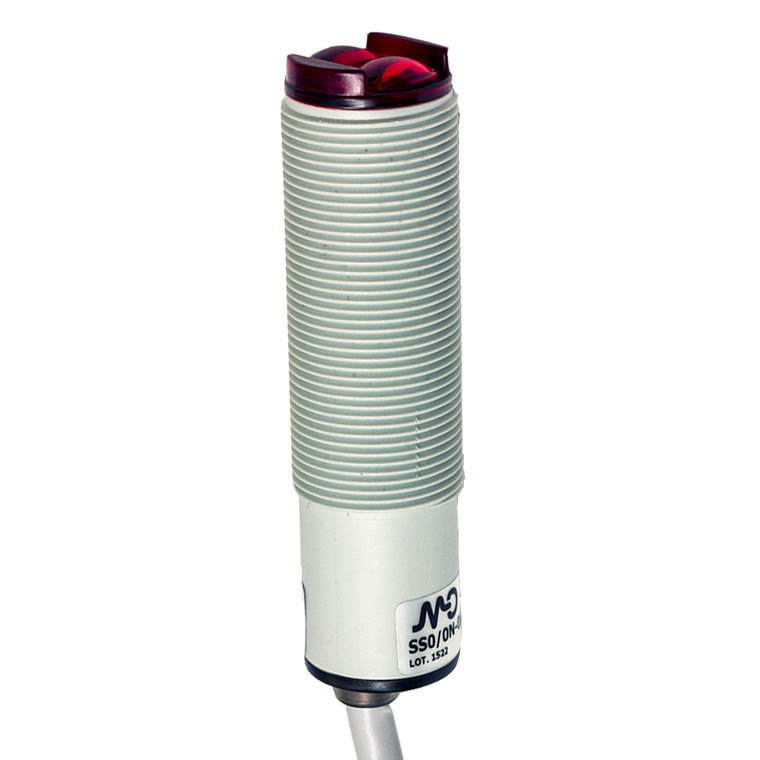

Datasensing SS1/0N-0A Sensors
Datasensing
$107.78
The Datasensing SS1/0N-0A Sensors are designed for precision and reliability, featuring a nominal sensing distance of 100mm and a repeat accuracy of 5%. These sensors utilize a blackground suppression function principle, ensuring accurate detection with a minimum detectable object size of 3.5mm. The optic position is axial, and the output type is NPN L/D selectable, providing flexibility in various applications. With a switching frequency of 1kHz and a response time of 500µs, these sensors are ideal for high-speed operations.
Built to withstand harsh environments, the SS1/0N-0A Sensors offer complete protection against electrical damages, including short-circuit and reverse polarity protection. They are housed in a durable PBT/PC material with an IP67 protection degree, making them resistant to dust and water ingress. The sensors operate efficiently within a voltage range of 10
30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA.
The LED status indicator provides clear visibility of the sensor's operational status, while the ATEX models, category 3, are available upon request for use in potentially explosive atmospheres. The sensors are CE and cULus listed, ensuring compliance with international safety standards. With a compact design of M18 x 1/L=63.9mm and a weight of 70g, these sensors are easy to install and integrate into existing systems. Supplied with M18 x 1 nuts, they are ready for immediate deployment in a wide range of industrial applications.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- minimum detectable object:
- 3,5mm
- Sensitivity adjustment:
- No
- Function Principle:
- Blackground suppression
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- NPN L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 1Khz
- Response time:
- 500µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
