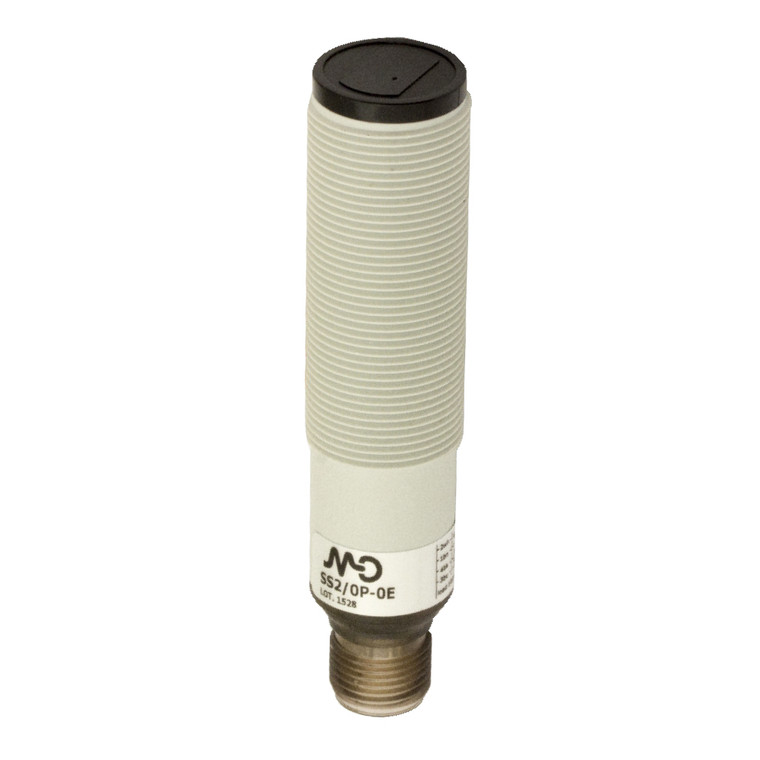

Datasensing SS2/0P-0EDA Sensors

The Datasensing SS2/0P-0EDA Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 100mm, these sensors are ideal for short-distance applications up to 200mm. The sensors boast a high repeat accuracy of 5% and are equipped with a PNP L/D selectable output type, ensuring flexibility in various operational settings. Constructed with a robust PBT/PC housing and PMMA active head material, the sensors are built to withstand harsh environments, offering an IP67 mechanical protection rating. They are equipped with an M12 plug connection for easy integration and come with supplied M18 x 1 nuts for secure installation. The sensors operate efficiently within a voltage range of 10…30VDC, with a low no-load supply current of ? 30mA and a load current capacity of ?100mA. They feature a fast switching frequency of 250Hz and a quick response time of 2ms, making them suitable for high-speed applications. Additional features include LED infrared emission at 880nm, protection against short-circuits, reverse polarity, and impulsive overvoltage, as well as resistance to external light interference up to 3000lux from incandescent lamps and 10000lux from sunlight. The sensors are CE and cULus approved, ensuring compliance with international standards, and are designed to operate in temperatures ranging from -25°C to +70°C. With a compact M18 x 1 dimension and a length of 78mm, these sensors are perfect for applications requiring precise and reliable photoelectric detection.
