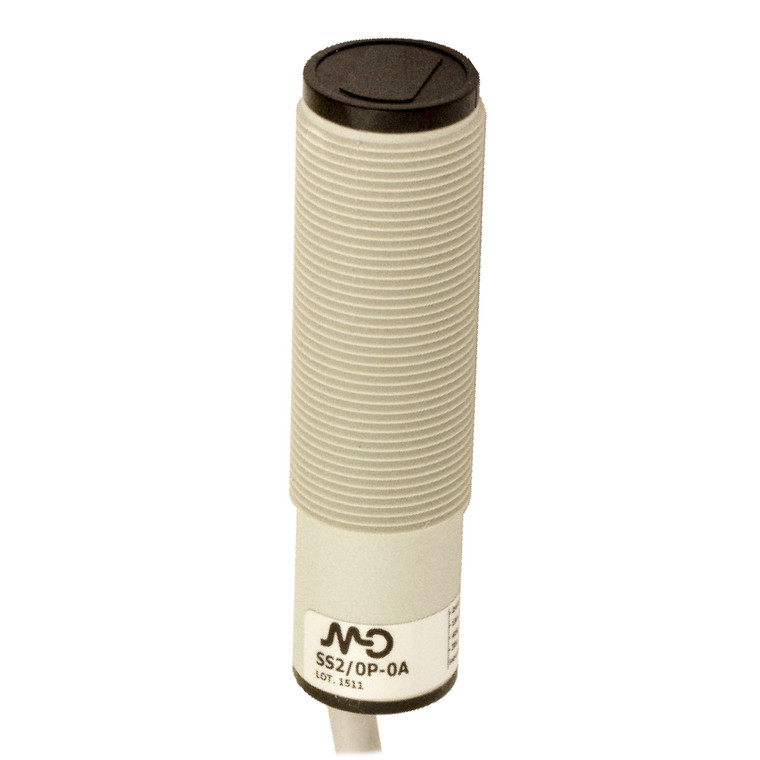

Datasensing SS2/LN-0A Sensors
Datasensing
$75.48
The Datasensing SS2/LN-0A Sensors are high-performance photoelectric sensors designed for precise and reliable detection. Featuring a diffuse reflection function with a nominal sensing distance of 100mm, these sensors are ideal for short-distance applications. The NPN Lon output type ensures efficient signal processing, while the robust PBT/PC housing provides durability in demanding environments. With an IP67 protection rating, these sensors are safeguarded against dust and water ingress, making them suitable for various industrial settings.
Equipped with a 2m PVC cable and an axial optic position, the SS2/LN-0A sensors offer easy installation and integration. The LED status indicator provides clear visual feedback, and the sensors are protected against electrical damages, including short-circuit and reverse polarity protection. Operating within a voltage range of 10 to 30VDC, they maintain a low no-load supply current of ?30mA and a load current of ?100mA.
These sensors are designed to withstand harsh conditions, with an operating temperature range of -25°C to +70°C and compliance with EMC standards EN 60947-5-2. The SS2/LN-0A models are CE and cULus listed, ensuring adherence to international safety and quality standards. Optional ATEX models for category 3 environments are available upon request, providing additional versatility for specialized applications.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Axial
- Output type:
- NPN Lon
- Output Function:
- Lon
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 1Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
