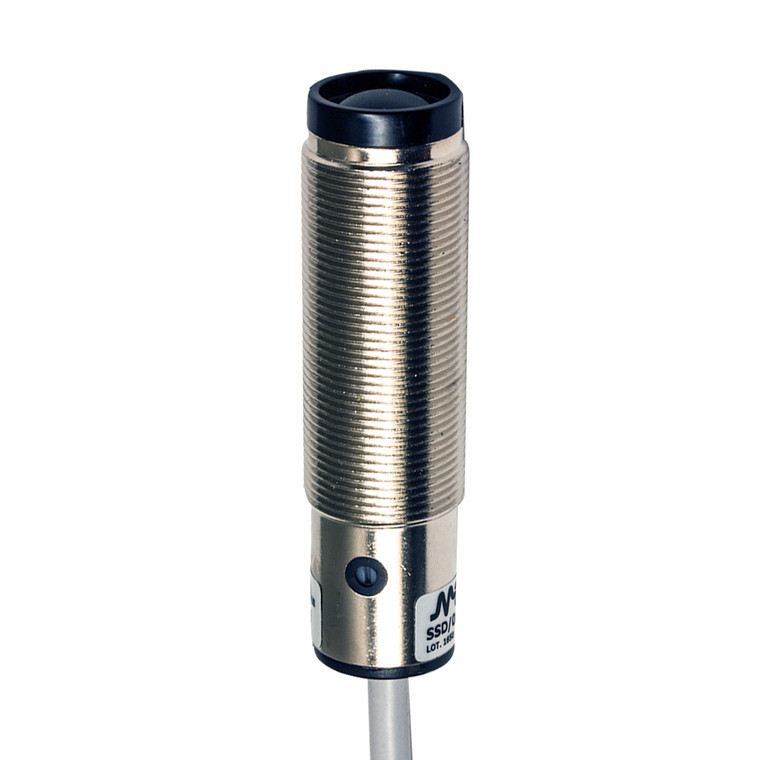

Datasensing SSD/0P-1A Sensors
Datasensing
$88.82
The Datasensing SSD/0P-1A Sensors are high-performance photoelectric sensor receivers designed for precision and reliability. With a nominal sensing distance of 14 meters and a repeat accuracy of 5%, these sensors are ideal for various industrial applications. The M18 receiver features an adjustable sensitivity trimmer and a PNP L/D selectable output, allowing for versatile use. The sensor is equipped with a 2-meter metal cable and an axial optic position, ensuring easy installation and integration.
Built to withstand harsh environments, the SSD/0P-1A Sensors offer complete protection against electrical damages, including short-circuit and reverse polarity protection. They are housed in durable nickel-plated brass with a PMMA active head material, providing an IP67 protection degree. The sensors are also ATEX models, category 3, available upon request, and come with a LED status indicator for easy monitoring.
Operating within a voltage range of 10 to 30VDC, these sensors have a low no-load supply current of ? 30mA and a load current of ?100mA. They are designed to handle impulsive overvoltage and have a high resistance to external light interference, making them suitable for challenging lighting conditions. The SSD/0P-1A Sensors are CE and cULus listed, ensuring compliance with international safety standards. Supplied with M18 x 1 nuts and a screwdriver, these sensors are ready for immediate deployment in your industrial setup.
- Nominal sensing distance:
- 14m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Receiver
- Emitter/Receiver:
- Receiver
- Optic position:
- Axial
- Output type:
- PNP L/D Selectable
- Output Function:
- L/D Selectable
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
