Datasensing ST 207 S Kit of 4 safety light curtain fastening, brackets with rotation on pin, inserts, bolts for LS
Datasensing
$113.54

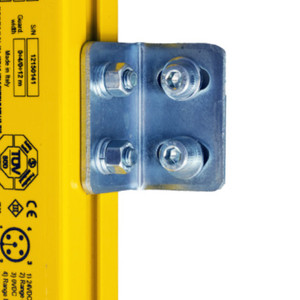

The Datasensing ST 207 S Kit is a comprehensive solution for securing safety light curtains, featuring four fastening brackets with rotational capability on pins, along with inserts and bolts specifically designed for LS models. This kit ensures robust and flexible installation, enhancing the safety and efficiency of your setup.

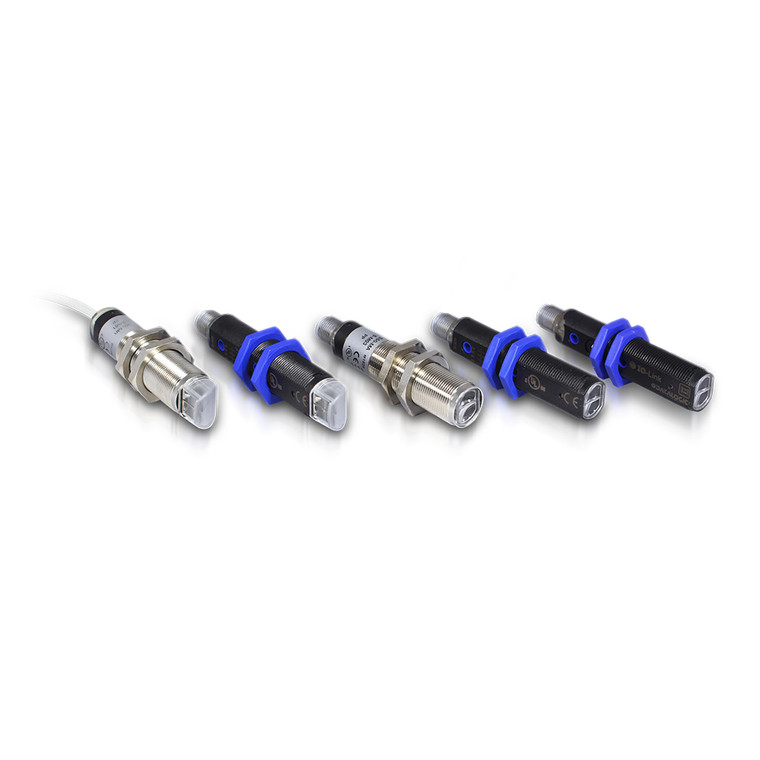

The accompanying Photoelectric Sensor is a high-performance device housed in a durable M18 metal casing with radial optics. It operates on a 10...30VDC power supply and features a red laser emission for precise detection. The sensor boasts improved EMI and ambient light immunity, ensuring reliable performance in various environments. It offers a nominal sensing distance of 50 meters and is equipped with a green POWER LED indicator for easy status monitoring.
Designed with user safety in mind, the sensor includes short-circuit and reverse polarity protection, as well as impulsive overvoltage protection. Its robust construction is complemented by IP67 mechanical protection, making it suitable for challenging industrial conditions. The sensor is compatible with IO-Link V1.1, providing advanced connectivity options.
With its compact dimensions of Ø18x69 and a nickel-plated brass housing, this sensor is both versatile and durable. It meets CE and cULus approvals and complies with EMC compatibility standards EN 60947-5-2. The sensor is supplied with M18 x 1 nuts for easy installation and is designed to withstand shocks and vibrations, ensuring long-lasting performance.
- Nominal sensing distance:
- 50m
- Sensitivity adjustment:
- n/a
- Function Principle:
- Through beam emitter
- Description:
- Tubular M18 - radial optic
- Optic position:
- Radial 90°
- Functions:
- Through beam emitter
- Output type:
- n/a
- Response time:
- n/a
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 35 mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- LED indicators:
- green POWER LED
- Short-circuit protection:
- YES
- Reverse Polarity Protection:
- Yes
- Emission:
- LASER Red
- Interference to external light:
- according to EN 60947-5-2 : 2020
- Impulsive Overvoltage Protection:
- Yes
- Insulation resistance:
- >20 M? 500 Vdc, between electronics and housing
- Contact resistance:
- 500 Vac 1 min., between electronics and housing
- Dimensions:
- Ø18x69
- Housing Material:
- Metal - Nickel plated brass
- Connections:
- M12 plug
- Active Head Material:
- PMMA
- Storage temperature:
- - 25°C +70°C
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- 0.5 mm amplitude, 10 55 Hz frequency, for every axis (EN60068-2-6)
- Supplied Accessories:
- nuts M18 x 1
- Dimensions:
- M18x69
- Operating Temperature:
- - 10°C + 50°C (Without freeze)
- Mechanical Protection:
- IP67
