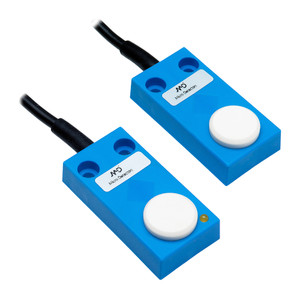

The Datasensing UHZ/AN-0A Sensors are designed for precision and reliability, featuring a cubic ultrasonic sensor with an Emitter + Receiver function principle. With a nominal sensing distance of 300mm and a beam angle of ± 8°, these sensors are perfect for applications requiring accurate distance measurement. The sensor operates with an NPN output type and a normally open (NO) output function, ensuring seamless integration into various systems.
Built with a robust plastic housing and IP67 protection degree, the UHZ/AN-0A offers total protection against electric damages, making it suitable for harsh environments. The sensor is equipped with a 2m PVC cable for easy connectivity and features a yellow LED indicator for output activity or incorrect alignment alerts.
The sensor's performance is enhanced by thermal compensation, ensuring consistent operation across a wide temperature range of -15°C to +60°C. It boasts a high switching frequency of 500Hz and a rapid response time of 1ms, making it ideal for fast-paced applications. The sensor is also equipped with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and longevity.
With CE approvals and EMC compatibility according to IEC 60947-5-2 standards, the Datasensing UHZ/AN-0A Sensors are a reliable choice for industrial automation and control systems. The compact dimensions of 24 x 30 x 15mm and a lightweight design of 100g make it easy to install in space-constrained environments.
- Nominal sensing distance:
- 300mm
- Beam angle:
- ± 8°
- Sensitivity adjustment:
- No
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 0mm
- Function Principle:
- Emitter + Receiver
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 500Hz
- Response time:
- 1ms
- Operating Voltage:
- 19 - 30Vdc
- Load current:
- 40mA
- Leakage current:
- < 10µA
- Output voltage drop:
- < 2,5V
- Max ripple content:
- < 10%
- LED indicators:
- Yellow LED (output active or incorrect alignment)
- Time delay before availability:
- < 200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- PBTP
- Connections:
- 2m PVC cable
- Active Head Material:
- ceramics
- Storage temperature:
- - 25°C + 75° C (without freeze)
- Transducer Frequency:
- 300KHz
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN 60947-5-2 / 7.4
- Degree of protection:
- IP67
- Mechanical Protection:
- IP67
