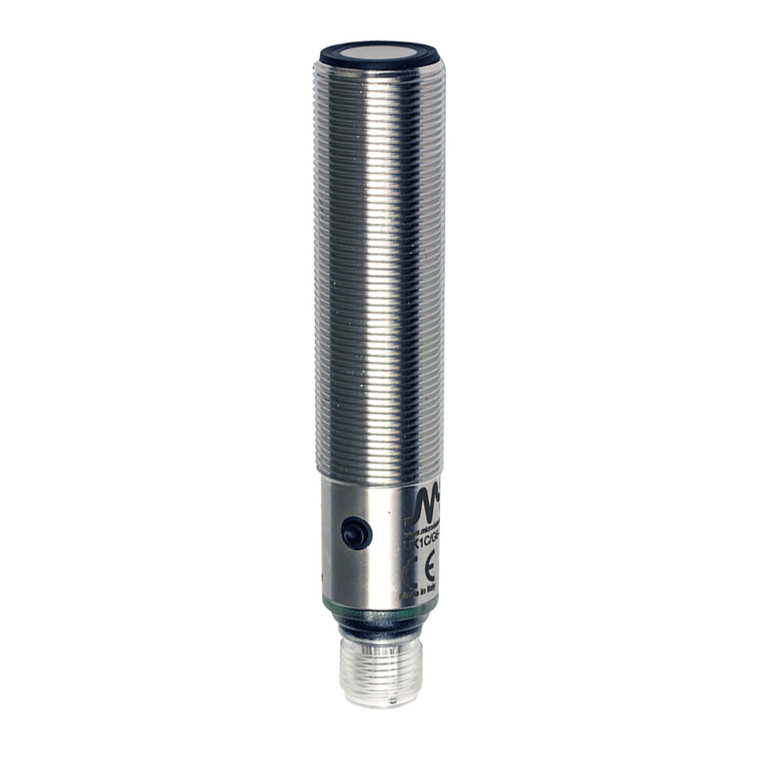

Datasensing UK1C/G6-1EIOSY Sensors
Datasensing
$435.15
The Datasensing UK1C/G6-1EIOSY Sensors are high-performance ultrasonic sensors designed for precision and reliability. Featuring an M18 analog design, these sensors offer a 4-20 mA output with PNP NO/NC functionality, suitable for a wide range of applications. With a nominal sensing distance of 900mm and a minimum sensing distance of 100mm, they provide accurate diffuse reflection sensing. The sensors are equipped with a teach-in button for easy sensitivity adjustment and a multifunction LED indicator for output type, adjustment procedure, and more. Constructed with AISI316L stainless steel housing, they ensure durability and resistance to harsh environments. The sensors are cULus approved and feature IO-LINK connectivity, making them ideal for modern industrial setups. They offer robust protection with short-circuit, reverse polarity, and impulsive overvoltage protection, and are designed to operate efficiently within a temperature range of -20°C to +70°C. With an IP67 degree of protection, these sensors are built to withstand challenging conditions, ensuring reliable performance in various industrial applications.
- Nominal sensing distance:
- 900mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Sensitivity adjustment:
- Teach-in button
- Minimum sensing distance (blind zone):
- 100mm
- Function Principle:
- Diffuse reflection
- Output type:
- IO-Link/PNP + 4 20mA
- Output Function:
- NO/NC + positive/negative slope
- Switching frequency:
- 3Hz
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Active Head Material:
- 10° ± 2°
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 x M18 x 1 nuts, 2 Ø 18 washers
- Mechanical Protection:
- IP67
