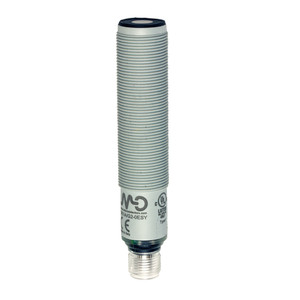

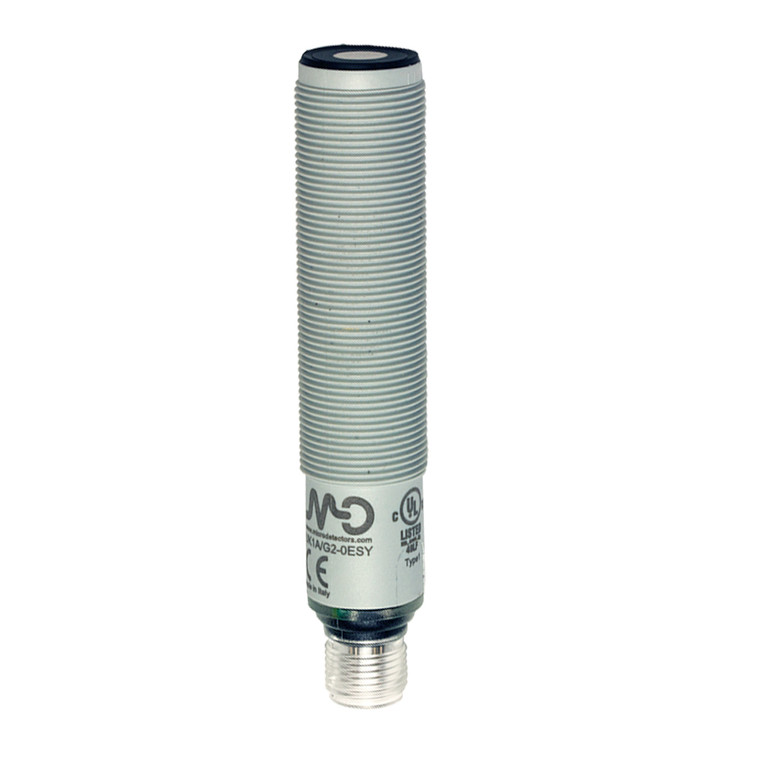

The Datasensing UKR1A/GM-0ESY Sensors are advanced ultrasonic retroreflective sensors designed for precision and reliability. With a nominal sensing distance of 400mm and a thermal drift of Sr at ±2%, these sensors ensure accurate detection in various applications. The M18 NPN NO+NC model features a 50-400 mm connection with an M12 plug and a convenient teach-in button for easy setup. The sensor's multifunction LED indicator provides clear feedback on output type, adjustment procedures, and NO/NC selection, while the adjustable hysteresis function allows for programmable double digital outputs, ideal for level-specific tasks.
Engineered with a robust PBT housing, the sensor is built to withstand harsh environments, offering an IP67 degree of protection. It operates efficiently within a temperature range of -20°C to +70°C and is equipped with short-circuit, reverse polarity, and impulsive overvoltage protection. The sensor's high resolution of ?3mm and a beam angle of 10° ± 2° ensure precise performance, while the teach-in button allows for quick and easy sensitivity adjustments. With a response time of 500ms and a switching frequency of 10Hz, the Datasensing UKR1A/GM-0ESY Sensors are perfect for applications requiring fast and reliable sensing capabilities.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Linearity error:
- 1%
- Minimum distance from background:
- 100mm
- Function Principle:
- Retroreflective
- Output type:
- 2x NPN
- Output Function:
- NO + NC
- Switching frequency:
- 10Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
