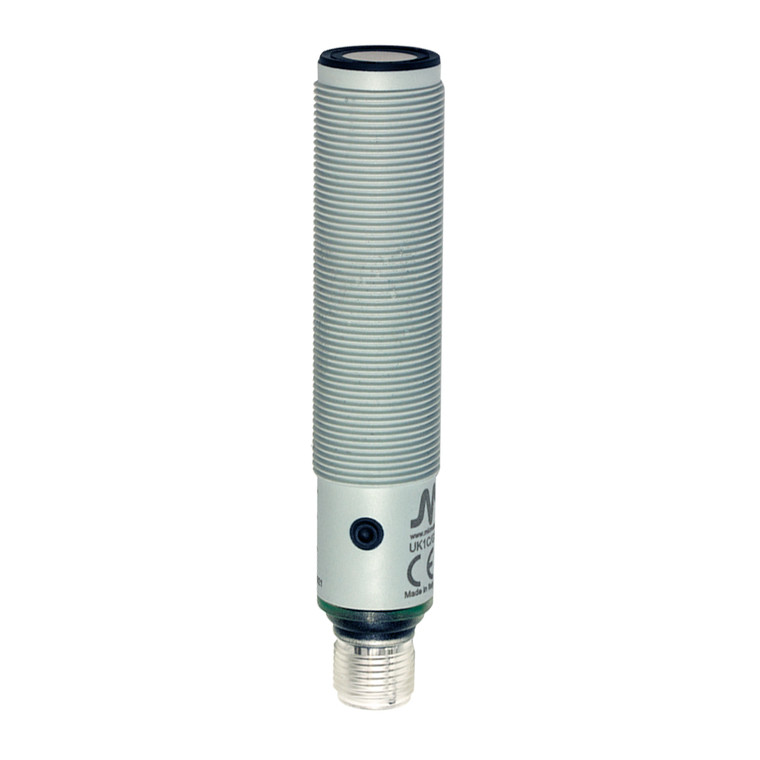

The Datasensing UKR1C/GM-0ESY Sensors are advanced ultrasonic retroreflective sensors designed for precision and reliability. With a nominal sensing distance of 900mm and a beam angle of 10° ± 2°, these sensors are perfect for applications requiring accurate distance measurement. The sensors feature a teach-in button for easy sensitivity adjustment and a multifunction LED indicator that provides clear feedback on output type, adjustment procedures, and more.
Equipped with dual NPN outputs (NO + NC), these sensors offer a switching frequency of 4Hz and a response time of 500ms, ensuring quick and efficient operation. The robust PBT housing and IP67 protection rating make them suitable for harsh environments, while the M12 connection ensures secure and easy installation.
With thermal compensation, short-circuit protection, and reverse polarity protection, the UKR1C/GM-0ESY Sensors are built to withstand challenging conditions. They operate within a voltage range of 10 - 30Vdc and have a no-load supply current of ?50mA. The sensors are CE and cULus approved, ensuring compliance with international standards.
Ideal for applications requiring precise level detection and distance measurement, these sensors are supplied with two nuts and washers for easy mounting. Whether for industrial automation or other demanding applications, the Datasensing UKR1C/GM-0ESY Sensors deliver reliable performance and exceptional accuracy.
- Nominal sensing distance:
- 900mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Linearity error:
- 1%
- Minimum distance from background:
- 150mm
- Function Principle:
- Retroreflective
- Output type:
- 2x NPN
- Output Function:
- NO + NC
- Switching frequency:
- 4Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
