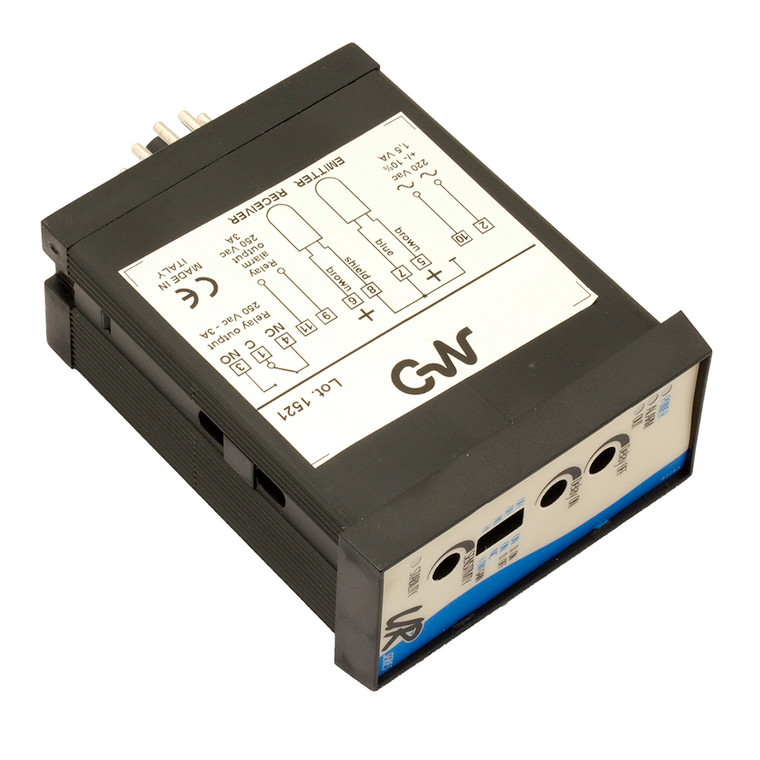

The Datasensing URD/T0 Sensors are designed for optimal performance in challenging environments, featuring a robust photoelectric sensor with amplification and a 24VAC power supply. Equipped with a double timer for independent adjustments, these sensors offer precise sensitivity control and can be conveniently mounted on panels. The unit supports both AC and DC operating voltages and includes relay output and alarm functionalities. With a sensing distance of up to 60 meters in high mode and 30 meters in low mode, these sensors are ideal for a variety of applications. The IP68-rated photoelectric sensors ensure reliable operation in harsh conditions, while the LED indicators provide clear status updates on alignment, operating voltage, alarm, and output state. The device is CE approved and conforms to EMC directives, ensuring high standards of safety and compatibility. With a compact design and durable Noryl 90 V-0 housing, the Datasensing URD/T0 Sensors are a reliable choice for industrial environments.
- Switching frequency:
- 10Hz
- Operating Voltage:
- 24Vac
- No-Load supply current:
- 1,5 VA
- LED indicators:
- green (supply) red (output state) green (stability) red (alarm)
- Frequency:
- 50 60Hz
- Max output voltage:
- 250V
- Max output current:
- 3A
- Timer functions:
- yes
- Operating time (relè de-energized):
- ? 40ms
- Reset time (relè energized):
- ? 40ms
- Voltage tolerance:
- +10% -15%
- Operating output:
- Relay NO+NC
- Relay with alarm output:
- no
- Weight:
- 110g
- Housing Material:
- Noryl 90 V-0
- Approvals:
- CE
- EMC compatibility:
- Conforming with EMC directive according with EN60947-5-2
- Degree of protection:
- IP20
- Mechanical Protection:
- IP20
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
