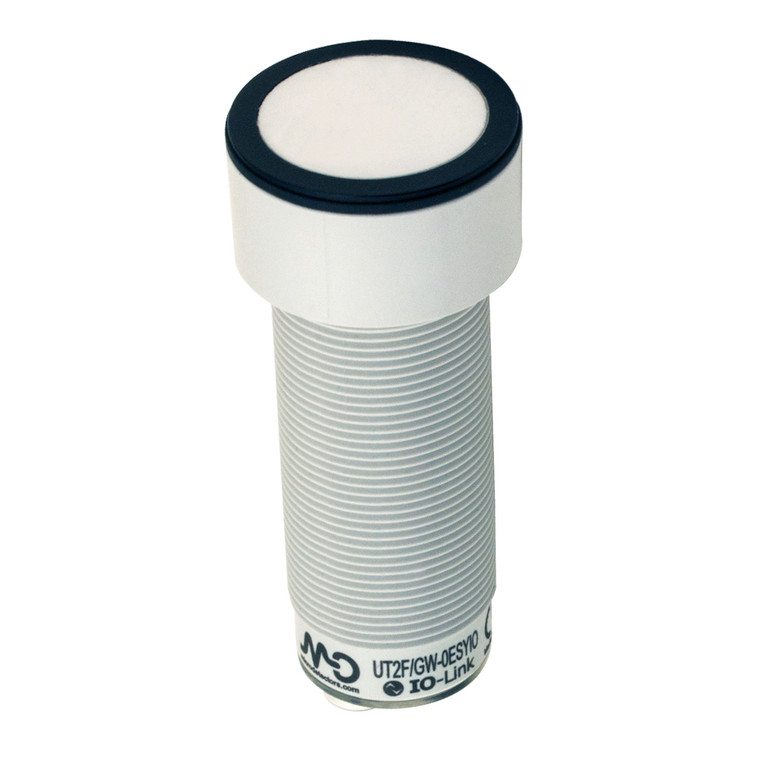

Datasensing UT2F/GM-0ESY Sensors

The Datasensing UT2F/GM-0ESY Sensors are advanced ultrasonic sensors designed for high-performance applications. Encased in a robust M30 housing, these sensors feature a large shape transducer with a diameter of 38.8 mm, providing exceptional sensing distances ranging from 350 to 6000 mm. The sensors are equipped with an NPN adjustable hysteresis and a standard window, ensuring precise level detection and object recognition. Installation is made simple with the Teach-in button, allowing for quick adjustments to the working area, whether in window mode or object mode. The sensors offer dual digital programmable outputs, enhancing their versatility for various applications. The models are available with either voltage or current output, with a programmable slope to optimize resolution. The UT2F/GM-0ESY Sensors are designed with user-friendly features, including two multifunction LEDs: an orange LED for adjustment procedures and output type, and a green LED for target alignment. The durable construction includes a combination of plastic and AISI 316L stainless steel housing, with options for an M12 plug or a 4-pin cable exit. These sensors are equipped with essential protective features such as short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. They are cULus approved and offer EMC compatibility, ensuring reliable performance in demanding environments. With a diffuse reflection function principle and NO/NC multifunction outputs, the Datasensing UT2F/GM-0ESY Sensors are ideal for a wide range of industrial applications.
