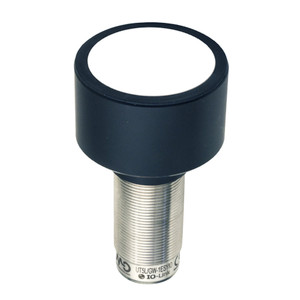

The Datasensing UT5L/H6-1EUL Sensors are high-performance ultrasonic sensors designed for precision and reliability. Encased in a robust AISI316L stainless steel M30 housing, these sensors feature a large shape transducer with a diameter of 61mm, offering exceptional sensing distances ranging from 600 to 8000 mm. The analog output of 4-20 mA combined with PNP NO/NC functionality ensures versatile application possibilities.
Equipped with an adjustable hysteresis function, these sensors are ideal for level detection, providing double digital programmable output. The models offer both voltage and current output with a programmable slope to optimize resolution, making them adaptable to various industrial needs. The working area can be easily adjusted using the Teach-in button, allowing for quick and straightforward installation in either window mode or object mode.
The sensors are designed with two multifunction LEDs: an orange LED for adjustment procedures and output type, and a green LED for target alignment, ensuring user-friendly operation. The durable construction includes a plastic and AISI 316L stainless steel housing, with an M12 plug or cable exit featuring a 4-pin connection for secure and reliable connectivity.
With features like short-circuit protection, reverse polarity protection, and impulsive overvoltage protection, these sensors are built to withstand challenging environments. They are cULus approved and offer EMC compatibility, ensuring compliance with industry standards. The Datasensing UT5L/H6-1EUL Sensors are the perfect choice for applications requiring high accuracy and robust performance.
