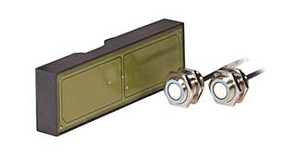

Leuze DB 14 K-7 Industrial Sensor System
Leuze
$1,464.00
The DB 14 K-7 is a precision industrial sensor engineered for demanding automation applications. Featuring IP65 protection and wide operating temperature range, it delivers reliable performance in manufacturing, logistics, and process control environments.
Technical Specifications:
Protection rating: IP65 (dust-protected, water-resistant)
Operating temperature: 0...40 °C
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model DB 14 K-7). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- 14
- Principle of physics:
- Capacitive
- Operating range:
- 0.006 ... 0.007 m
- Type of connection:
- Cable with connector
- Cable length:
- 2,500 mm
- Thread size:
- M8
- Material:
- Metal
- No. of pins:
- 5 -pin
- Design:
- Cubic
- Dimension (W x H x L):
- 44 mm x 19 mm x 150 mm
- Housing material:
- Metal
- Metal housing:
- Aluminum
- Net weight:
- 80 g
- Ambient temperature, operation:
- 0 ... 40 °C
- Degree of protection:
- IP 65
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270102
- ECLASS 8.0:
- 27270102
- ECLASS 9.0:
- 27270102
- ECLASS 10.0:
- 27270102
- ECLASS 11.0:
- 27270102
- ECLASS 12.0:
- 27274201
- ECLASS 13.0:
- 27274201
- ECLASS 14.0:
- 27274201
- ECLASS 15.0:
- 27274201
- ETIM 5.0:
- EC002715
- ETIM 6.0:
- EC002715
- ETIM 7.0:
- EC002715
- ETIM 8.0:
- EC002715
- ETIM 9.0:
- EC002715
- ETIM 10.0:
- EC002715
