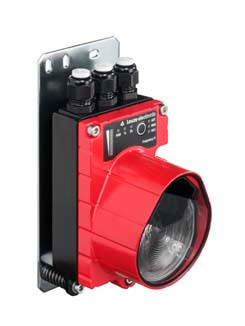

DDLS 200/120.1-10-H Optical data transmission

Leuze DDLS 200/120.1-10-H Optical data transmission

Leuze
SKU:
DDLS 200/120.1-10-H
Availability:
Factory stock
$4,848.00
Condition:
New
Current Stock:
Description
The Leuze DDLS 200/120.1-10-H is an optical data transmitter from the DDLS 200 series, designed for wireless data transmission over distances of 0.2 to 120 meters using infrared LED light source with parallel light axes and a 1° usable opening angle. It operates on 18-30 VDC supply, supports PROFIBUS DP or RS 485 interfaces at 2 Mbit/s transmission rate with frequency F1, and includes integrated heating for operation down to -30°C, integrated repeater function (switchable), and PNP warning output. Featuring IP65 protection, M16 terminal or M12 connector options, and mounting on a plate, it suits industrial applications like harsh-environment networking where cabling is impractical, with approvals including c UL US and EMC per EN 61000 standards. Documentation - Technical Datasheet: https://www.leuze.com/en-us/ddls-200-120.1-10-h/50036286 - Product Manual: https://www.leuze.com/en-us/products/optical-data-transmission/ddls-200/50036286/downloads - CAD Drawings: https://www.leuze.com/en-us/ddls-200-120.1-10-h/50036286/cad - Approvals Overview: https://www.leuze.com/en-us/ddls-200-120.1-10-h/50036286/certificates
Additional Information
Series:
DDLS 200
Special version:
Heating,Not influenced by reflective surfaces,Operation of parallel light axes
Working range:
200 ... 120,000 mm
Light source:
LED, Infrared
Transmission frequency:
F1
Opening angle:
1 °
Supply voltage UB:
18 ... 30 V, DC
Number of digital switching inputs:
1 Piece(s)
Number of digital switching outputs:
1 Piece(s)
Type:
PROFIBUS DP, RS 485
Transmission speed:
0.0096 ... 1.5 Mbit/s
Number of connections:
3 Piece(s)
No. of pins:
8 -pin
No. of pins:
6 -pin
Dimension (W x H x L):
89.25 mm x 196.5 mm x 111.8 mm
Housing material:
Metal
Net weight:
1,245 g
Type of display:
Bar graph,LED
Ambient temperature, operation:
-30 ... 50 °C
Ambient temperature, storage:
-30 ... 70 °C
Degree of protection:
IP 65
Approvals:
c UL US
Test procedure for EMC in accordance with standard:
EN 61000-6-2:2005,EN 61000-6-4:2001
Test procedure for noise in accordance with standard:
EN 60068-2-64
Test procedure for oscillation in accordance with standard:
EN 60068-2-6
Test procedure for shock in accordance with standard:
EN 60068-2-27,EN 60068-2-29
Customs tariff number:
84718000
ECLASS 5.1.4:
19039001
ECLASS 8.0:
19179090
ECLASS 9.0:
19179090
ECLASS 10.0:
19170506
ECLASS 11.0:
19170506
ECLASS 12.0:
19170506
ECLASS 13.0:
19170506
ECLASS 14.0:
19170506
ECLASS 15.0:
19170506
ETIM 5.0:
EC000515
ETIM 6.0:
EC000515
ETIM 7.0:
EC000515
ETIM 8.0:
EC000515
ETIM 9.0:
EC000515
ETIM 10.0:
EC000515
Datasheet:
View
Brochure:
View
Declaration of Conformity:
View
