DDLS 200/200.2-20 Optical data transmission

Leuze DDLS 200/200.2-20 Optical data transmission

Leuze
SKU:
DDLS 200/200.2-20
Availability:
Factory stock
$7,233.00
Condition:
New
Current Stock:
Description

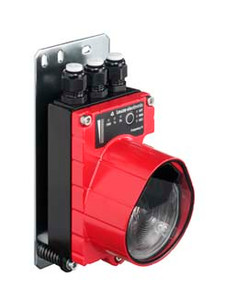

The Leuze DDLS 200/200.2-20 is an optical data transmission unit (receiver/transmitter frequency F2) designed for contact-free transmission of industrial fieldbus protocols and RS interfaces up to 2 Mbit/s over distances up to 200 m using infrared light at 880 nm wavelength. It features a narrow opening angle of ±1°, IP65 aluminum die-cast housing (approx. 1200 g), 18–30 V DC supply (200 mA typical without heating), low sensitivity to ambient light via FSK modulation, and compatibility with PROFIBUS DP, Interbus, RS422/RS485, and others. Suitable for automated high-bay warehouses and harsh environments, it supports fine optical axis alignment (360° rotation) and includes LED indicators for status, data traffic, and receive level bar graph; pair with DDLS 200/200.1-20 for complete bidirectional link. Documentation - Technical Datasheet: https://www.leuze.com/en-int/ddls-200-200.2-20/50036289 - Operating Instructions: https://www.leuze.com/en/products/optical-data-transmission/ddls-200/operating-instructions - Product Family Overview: https://www.leuze.com/en/products/optical-data-transmission/ddls-200-with-2-mbit-s-transmission-rate - CAD Data: https://www.leuze.com/en/products/ddls-200-200.2-20/cad
Additional Information
Series:
DDLS 200
Special version:
Not influenced by reflective surfaces,Operation of parallel light axes
Working range:
200 ... 200,000 mm
Light source:
LED, Infrared
Transmission frequency:
F2
Opening angle:
1 °
Supply voltage UB:
18 ... 30 V, DC
Number of digital switching inputs:
1 Piece(s)
Number of digital switching outputs:
1 Piece(s)
Type:
RS 422, Interbus-S
Transmission speed:
2?Mbit/s
Number of connections:
3 Piece(s)
No. of pins:
8 -pin
No. of pins:
10 -pin
Dimension (W x H x L):
89.25 mm x 196.5 mm x 111.8 mm
Housing material:
Metal
Net weight:
1,245 g
Type of display:
Bar graph,LED
Ambient temperature, operation:
-5 ... 50 °C
Ambient temperature, storage:
-30 ... 70 °C
Degree of protection:
IP 65
Approvals:
c UL US
Test procedure for EMC in accordance with standard:
EN 61000-6-2:2005,EN 61000-6-4:2001
Test procedure for noise in accordance with standard:
EN 60068-2-64
Test procedure for oscillation in accordance with standard:
EN 60068-2-6
Test procedure for shock in accordance with standard:
EN 60068-2-27,EN 60068-2-29
Customs tariff number:
84718000
ECLASS 5.1.4:
19039001
ECLASS 8.0:
19179090
ECLASS 9.0:
19179090
ECLASS 10.0:
19170506
ECLASS 11.0:
19170506
ECLASS 12.0:
19170506
ECLASS 13.0:
19170506
ECLASS 14.0:
19170506
ECLASS 15.0:
19170506
ETIM 5.0:
EC000515
ETIM 6.0:
EC000515
ETIM 7.0:
EC000515
ETIM 8.0:
EC000515
ETIM 9.0:
EC000515
ETIM 10.0:
EC000515
