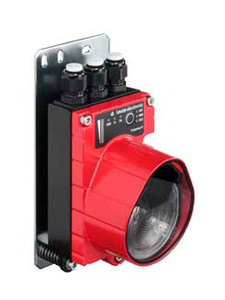

Leuze DDLS 200/500.2-10 Optical Data Transmission System
Leuze
$6,949.00
The DDLS 200/500.2-10 provides non-contact optical data transmission for industrial automation systems requiring reliable communication across moving machine axes. Using infrared LED technology, this unit eliminates wear-prone slip rings and cable drag chains in material handling and intralogistics applications.
Technical Specifications:
Light source: LED, infrared emission
Communication interface: PROFIBUS DP for direct PLC integration
Protection rating: IP65 (dust-protected, water-resistant)
Supply voltage: 18...30 V DC with reverse polarity protection
Operating temperature: -5...50 °C
Typical Applications:
Ideal for automated storage and retrieval systems (AS/RS), high-bay warehouses, stacker cranes, rotating index tables, and transfer cars where continuous data communication across moving joints is required. Eliminates maintenance-intensive slip rings and reduces cable wear in repetitive motion applications.
Technical Documentation:
Complete technical specifications, dimensional drawings, wiring diagrams, and safety documentation are available on the Leuze website at https://www.leuze.com/en-us/usa/products (search model DDLS 200/500.2-10). CAD models in STEP and EPLAN formats available for download to streamline machine design and panel layout.
- Series:
- DDLS 200
- Special version:
- Not influenced by reflective surfaces,Operation of parallel light axes
- Working range:
- 200 ... 500,000 mm
- Light source:
- LED, Infrared
- Transmission frequency:
- F2
- Opening angle:
- 1 °
- Supply voltage UB:
- 18 ... 30 V, DC
- Number of digital switching inputs:
- 1 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- PROFIBUS DP, RS 485
- Transmission speed:
- 0.0096 ... 0.09375 Mbit/s
- Number of connections:
- 3 Piece(s)
- No. of pins:
- 8 -pin
- No. of pins:
- 6 -pin
- Dimension (W x H x L):
- 89.25 mm x 196.5 mm x 111.8 mm
- Housing material:
- Metal
- Net weight:
- 1,245 g
- Type of display:
- Bar graph,LED
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2:2005,EN 61000-6-4:2001
- Test procedure for noise in accordance with standard:
- EN 60068-2-64
- Test procedure for oscillation in accordance with standard:
- EN 60068-2-6
- Test procedure for shock in accordance with standard:
- EN 60068-2-27,EN 60068-2-29
- Customs tariff number:
- 84718000
- ECLASS 5.1.4:
- 19039001
- ECLASS 8.0:
- 19179090
- ECLASS 9.0:
- 19179090
- ECLASS 10.0:
- 19170506
- ECLASS 11.0:
- 19170506
- ECLASS 12.0:
- 19170506
- ECLASS 13.0:
- 19170506
- ECLASS 14.0:
- 19170506
- ECLASS 15.0:
- 19170506
- ETIM 5.0:
- EC000515
- ETIM 6.0:
- EC000515
- ETIM 7.0:
- EC000515
- ETIM 8.0:
- EC000515
- ETIM 9.0:
- EC000515
- ETIM 10.0:
- EC000515
