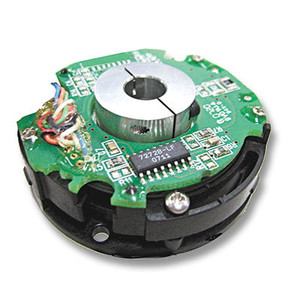

Dynapar M53 Modular Encoder M532000/013EB
Dynapar
$391.00
The Dynapar brand M53 modular encoder provides high-performance, cost effective feedback for stepper and servo motor controls. The bearingless design offers reliability advantages that can not be matched by standard flex mount or housed encoders.
- Series:
- M53
- Average leadtime:
- 0 Business Days
- Feedback Type:
- Incremental
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 0.3
- Connection Location:
- Radial
- Connection Type:
- Pigtail Cable
- Disk Material:
- Glass
- Housing Material:
- Glass Filled Polymer
- Maximum Operating Speed (RPM):
- 12000
- Shaft / Bore Material:
- Aluminum
- Shaft / Bore Size (mm):
- 6
- Shaft Type:
- Modular and Frameless
- Termination:
- 2 ft Shielded Cable
- Duty Cycle:
- 45-55%
- Incremental Signal Format:
- A Leads B for CCW rotation of motor shaft
- Incremental Signals:
- A, A', B, B', Z, Z'
- Input Voltage:
- 5 VDC
- Maximum Frequency Response (KHz):
- 200
- Output Signal:
- 5 VDC Line Driver Incremental only
- Resolution (PPR):
- 2000
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Housing Protection Level:
- IP54
- Humidity Non-Condensing (%):
- 98
- Maximum Operating Temperature (°C):
- 100
- Maximum Storage Temperature (°C):
- 125
- Minimum Operating Temperature (°C):
- -20
- Minimum Storage Temperature (°C):
- -50
- Datasheet:
- View
