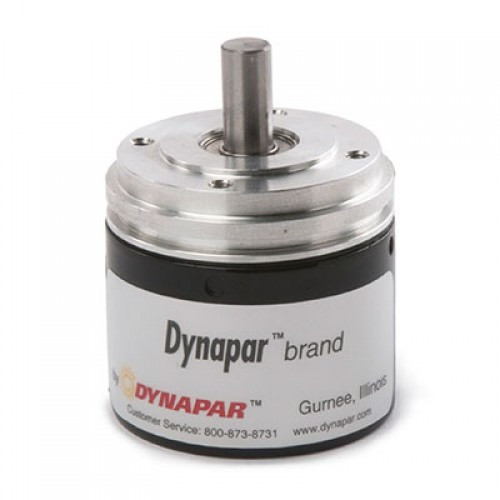

Dynapar E1425000G204 Series E14 Hub Shaft Encoder

(No reviews yet) Write a Review

Write a Review

Dynapar

Dynapar E1425000G204 Series E14 Hub Shaft Encoder

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

E1425000G204

UPC:

MPN:

E1425000G204

Condition:

New

Series:

E14H

Average leadtime:

5 Business Days

Feedback Type:

Incremental

Mounting Configuration:

Size E14

Technology Sensing Type:

Optical

Weight (Pounds):

1

Connection Location:

Radial

Connection Type:

Pigtail Cable

Disk Material:

Glass

Flange Material:

Aluminum

Housing Material:

Aluminum

Maximum Operating Speed (RPM):

5000

Shaft / Bore Material:

Stainless Steel

Shaft / Bore Size (mm):

9.525

Shaft Type:

Hub Shaft

Starting Torque (Ncm):

0.64

Termination:

15 ft Cable

Duty Cycle:

45-55%

Incremental Signal Format:

A Leads B CW viewed from Shaft end of Encoder

Incremental Signals:

A, B

Input Voltage:

5 VDC

Line Driver Type:

7272

Maximum Frequency Response (KHz):

100

Output Signal:

5 VDC

Resolution (PPR):

2500

Housing Protection Level:

IP54

Humidity Non-Condensing (%):

98

Maximum Operating Temperature (°C):

70

Maximum Storage Temperature (°C):

70

Minimum Operating Temperature (°C):

0

Minimum Storage Temperature (°C):

-25

Datasheet:

View
