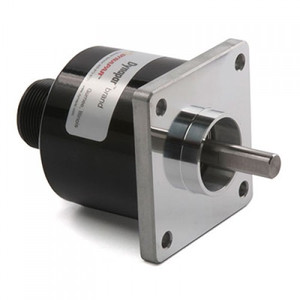

Dynapar HR52510240630 HR25 Encoder, 2.5" Flange Mount, 1/4" Shaft, 1024 PPR, IP66 Sealed
Dynapar
$879.00
The Series HR25 is a rugged, reliable and economical encoder for industrial motion applications.
- Series:
- HR525-HR625
- Average leadtime:
- 5 Business Days
- Feedback Type:
- Incremental
- Mounting Configuration:
- Flange
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 3
- Connection Location:
- Axial
- Connection Type:
- Connector
- Disk Material:
- Mylar
- Flange Material:
- Aluminum
- Maximum Operating Speed (RPM):
- 10000
- Shaft / Bore Material:
- Stainless Steel
- Shaft / Bore Size (mm):
- 9.525
- Shaft Type:
- Shafted
- Termination:
- 7 Pin MS Connector
- Duty Cycle:
- 45-55%
- Incremental Signal Format:
- Format C: A Lead B CW
- Incremental Signals:
- A, A', B, B'
- Input Voltage:
- 5-26 VDC
- Line Driver Type:
- 7272
- Maximum Frequency Response (KHz):
- 100
- Output Signal:
- 5 VDC
- Resolution (PPR):
- 1024
- Reverse Polarity Protection:
- Yes
- Short Circuit Protection:
- Yes
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Housing Protection Level:
- IP54
- Humidity Non-Condensing (%):
- 98
- Maximum Operating Temperature (°C):
- 70
- Maximum Storage Temperature (°C):
- 90
- Minimum Operating Temperature (°C):
- 0
- Minimum Storage Temperature (°C):
- -40
- Noise Immunity Testing Specification:
- EN61326-1
- Shock Resistance:
- 50G, 11msec
- Vibration Resistance:
- 20G, 5-2000Hz
- Datasheet:
- View
