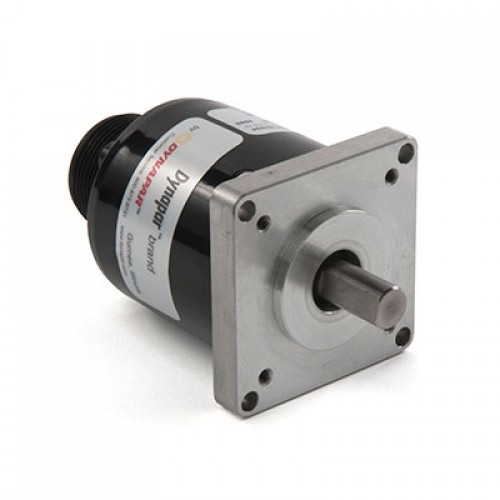

Dynapar H21030002250P Series H20 Hub Shaft Encoder

Dynapar H21030002250P H20 Hub Shaft Encoder

Dynapar
SKU:
H21030002250P
Availability:
Contact us to confirm availability and lead times.
$839.00
Condition:
New
Current Stock:
Description
The Dynapar brand Series H20 Hub Shaft encoder is a rugged, reliable and economical encoder for direct coupling to motors or machine shafts.
Additional Information
Series:
H20HS
Average leadtime:
5 Business Days
Feedback Type:
Incremental
Mounting Configuration:
Servo
Technology Sensing Type:
Optical
Weight (Pounds):
3.1
Connection Location:
Radial
Connection Type:
Connector
Disk Material:
Mylar
Flange Material:
Aluminum
Housing Material:
Aluminum
Maximum Operating Speed (RPM):
5000
Shaft / Bore Material:
Aluminum
Shaft / Bore Size (mm):
15.875
Shaft Type:
Hub Shaft
Starting Torque (Ncm):
2.12
Termination:
5 Pin M12
Duty Cycle:
45-55%
Incremental Signal Format:
A Leads B CCW viewed from Shaft end of Encoder
Incremental Signals:
A
Input Voltage:
5-26 VDC
Line Driver Type:
7273
Maximum Frequency Response (KHz):
100
Output Signal:
Open Collector
Resolution (PPR):
300
Reverse Polarity Protection:
Yes
Short Circuit Protection:
Yes
Hazardous Area Rating:
[None]
Hazardous Area Rating Certification:
[None]
Housing Protection Level:
IP54
Humidity Non-Condensing (%):
98
Maximum Operating Temperature (°C):
70
Maximum Storage Temperature (°C):
90
Minimum Operating Temperature (°C):
0
Minimum Storage Temperature (°C):
-40
Noise Immunity Testing Specification:
EN61326-1
Shock Resistance:
50G, 11msec
Vibration Resistance:
20G, 5-2000Hz
Datasheet:
View
