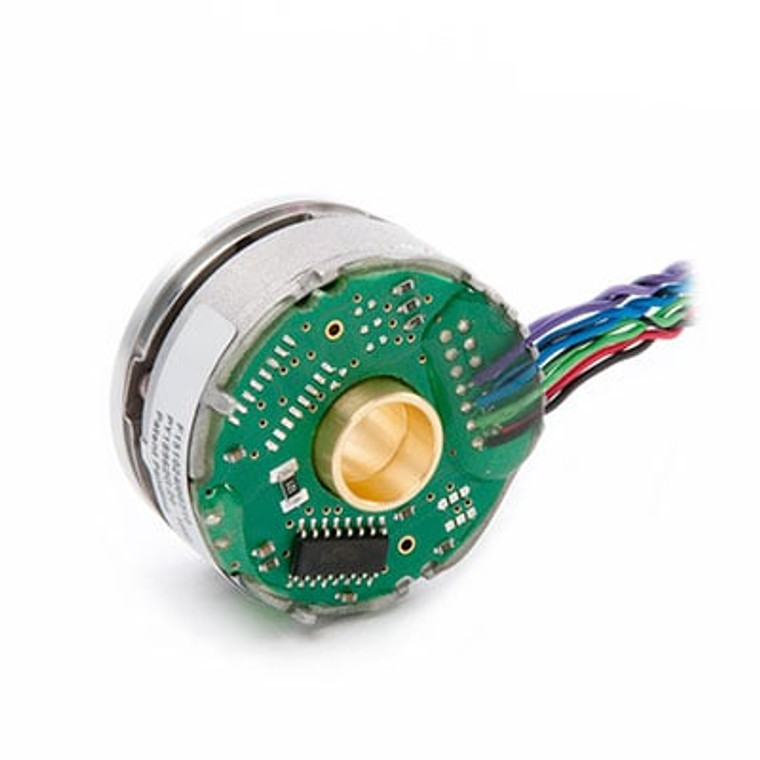

The Series F15 encoder provides high performance, cost effective feedback for stepper and servo motor applications. The F15 offers compact package dimensions and flying leads for a low-profile installation.
- Series:
- F15
- Average leadtime:
- 20 Business Days
- Feedback Type:
- Incremental
- Mounting Configuration:
- 1.435" (36.45mm) x 0.95" thick Servo Ring with Integral Flexure
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 1
- Disk Material:
- Thick glass
- Housing Material:
- Cast Aluminum
- Shaft / Bore Material:
- Brass
- Shaft / Bore Size (mm):
- 9.525
- Shaft Type:
- Hollow Shaft
- Termination:
- 6.5 in ± 0.5 in Twisted Pair Flying Leads
- Incremental Signals:
- A, B, Z, U, V, W
- Input Voltage:
- 5 VDC
- Maximum Frequency Response (KHz):
- 300
- Output Signal:
- line driver out for incremental
- Resolution (PPR):
- 1024
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Humidity Non-Condensing (%):
- 90
- Maximum Operating Temperature (°C):
- 120
- Maximum Storage Temperature (°C):
- 120
- Minimum Operating Temperature (°C):
- 0
- Minimum Storage Temperature (°C):
- 0
- Datasheet:
- View
