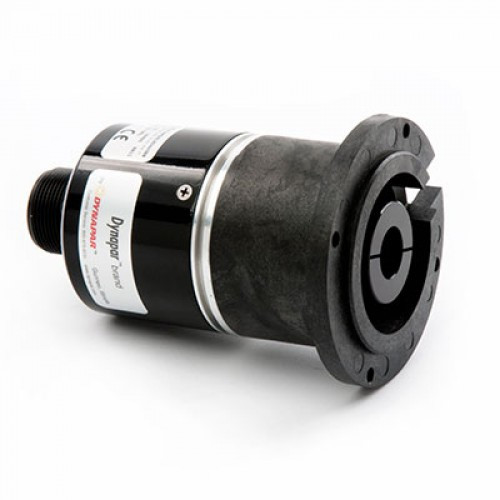

Dynapar HR5260120A204 Series HR26 Industrial Encoder
Dynapar
$997.00
The Series HR26 is designed for rugged industrial applications. The integral shaft coupling and mounting flange allows it to be installed on the end of a motor or shaft assembly without the addition of a bracket or coupling.
- Series:
- HR526
- Average leadtime:
- 5 Business Days
- Feedback Type:
- Incremental
- Mounting Configuration:
- Flange Adapter with Pilot
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 3
- Connection Location:
- Radial
- Connection Type:
- Pigtail Cable
- Disk Material:
- Mylar
- Flange Material:
- Aluminum
- Maximum Operating Speed (RPM):
- 10000
- Shaft / Bore Material:
- Stainless Steel
- Shaft / Bore Size (mm):
- 9.525
- Shaft Type:
- Shafted
- Termination:
- 6 ft Cable
- Duty Cycle:
- 45-55%
- Incremental Signal Format:
- Format A: A Leads B CCW
- Incremental Signals:
- A, A', B, B'
- Input Voltage:
- 5-26 VDC
- Line Driver Type:
- 7273
- Maximum Frequency Response (KHz):
- 100
- Output Signal:
- Open Collector w/ 2.2K Ohm
- Resolution (PPR):
- 120
- Reverse Polarity Protection:
- Yes
- Short Circuit Protection:
- Yes
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Housing Protection Level:
- IP54
- Humidity Non-Condensing (%):
- 98
- Maximum Operating Temperature (°C):
- 70
- Maximum Storage Temperature (°C):
- 90
- Minimum Operating Temperature (°C):
- 0
- Minimum Storage Temperature (°C):
- -40
- Noise Immunity Testing Specification:
- EN61326-1
- Shock Resistance:
- 50G, 11msec
- Vibration Resistance:
- 20G, 5-2000Hz
- Datasheet:
- View
