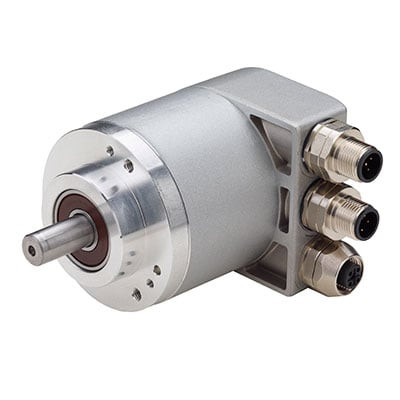

Dynapar AI2512120082E AI25 Absolute Encoder with CANopen Interface
Dynapar
$1,511.00
Our AI25 Absolute Encoder with CANopen interface offers shafted or hub-shafted mounting, rugged performance, IP67 option, onboard diagnostics and single or multi-turn positioning. Learn more here!
- Series:
- AI25 CanOpen
- Average leadtime:
- 10 Business Days
- Feedback Type:
- Absolute
- Interface:
- CANopen
- Mounting Configuration:
- Synchro flange
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 3.2
- Connection Location:
- Bus cover with 3x cable glands
- Housing Diameter (mm):
- 58
- Housing Material:
- Aluminium
- Moment Of Inertia:
- 3,8 x 10^-6 kgm²
- Revolution Count:
- 10000
- Revolution Short Term:
- 12000
- Shaft / Bore Material:
- Stainless Steel
- Shaft / Bore Size (mm):
- 6
- Shaft Loading Axial (mm):
- 40
- Shaft Loading Radial (mm):
- 80
- Shaft Type:
- Solid shaft
- Starting Torque (Ncm):
- 2
- Absolute Accuracy Type:
- ±36"
- Input Voltage:
- DC 10 - 30 V
- Output Code:
- Binary
- Repeatability Type:
- ±10"
- Resolution Multi Turn:
- 12 Bit
- Resolution Single Turn (Bits):
- 12
- Approvals / Certifications:
- [CE, c UL us (listed)]
- Housing Protection Level:
- IP65
- Maximum Operating Temperature (°C):
- 85
- Maximum Storage Temperature (°C):
- 85
- Minimum Operating Temperature (°C):
- -40
- Minimum Storage Temperature (°C):
- -40
- Shock Resistance:
- 1000 m/s² (6 ms)
- Vibration Resistance:
- 100 m/s² (10 - 500 Hz)
- Datasheet:
- View
