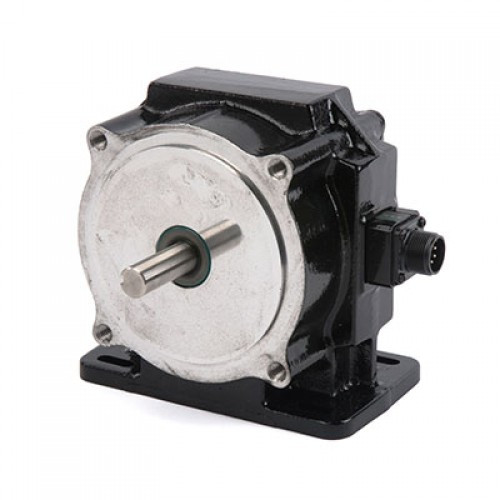

Dynapar H5620482643 H56 Series Rotopulser Encoder
Dynapar
$3,286.00
The Series H56 Rotopulser is the most rugged and reliable digital pulse generator available for heavy industrial speed, length, and position applications.
- Series:
- H56
- Average leadtime:
- 5 Business Days
- Feedback Type:
- Incremental
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 13
- Connection Location:
- Radial (Dual Isolated)
- Connection Type:
- Conduit Box with Mating Connector
- Disk Material:
- Glass
- Flange Material:
- Aluminum
- Housing Material:
- Aluminum
- Maximum Operating Speed (RPM):
- 5000
- Shaft / Bore Material:
- Stainless Steel
- Shaft Loading Axial (mm):
- 22.2
- Shaft Loading Radial (mm):
- 22.2
- Shaft Type:
- Shafted
- Termination:
- Pluggable Screw Terminal + Mating
- Duty Cycle:
- 43-57%
- Incremental Signals:
- A, A', B, B', Z, Z'
- Input Voltage:
- 5-26 VDC
- Line Driver Type:
- 7272
- Maximum Frequency Response (KHz):
- 100
- Output Signal:
- 5-26 VDC
- Resolution (PPR):
- 2048
- Reverse Polarity Protection:
- Yes
- Short Circuit Protection:
- Yes
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Housing Protection Level:
- IP54
- Humidity Non-Condensing (%):
- 98
- Maximum Operating Temperature (°C):
- 70
- Maximum Storage Temperature (°C):
- 90
- Minimum Operating Temperature (°C):
- 0
- Minimum Storage Temperature (°C):
- -40
- Noise Immunity Testing Specification:
- EN61326-1
- Shock Resistance:
- 50G, 11msec
- Vibration Resistance:
- 20G, 5-2000Hz
- Datasheet:
- View
