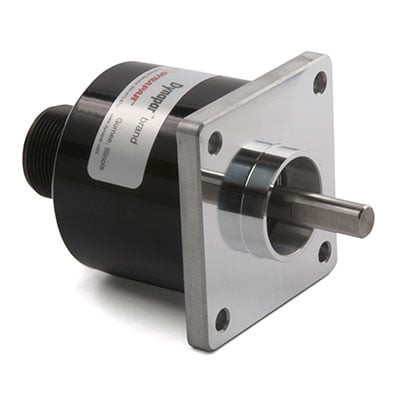

Dynapar HR6251024100S HR25 Encoder

Dynapar HR6251024100S HR25 Encoder

Dynapar
SKU:
HR6251024100S
Availability:
Contact us to confirm availability and lead times.
$972.00
Condition:
New
Current Stock:
Description
The Series HR25 is a rugged, reliable and economical encoder for industrial motion applications.
Additional Information
Series:
HR525-HR625
Average leadtime:
5 Business Days
Feedback Type:
Incremental
Mounting Configuration:
2.50" Servo
Technology Sensing Type:
Optical
Weight (Pounds):
3
Connection Location:
Axial
Connection Type:
Pigtail Cable
Disk Material:
Mylar
Flange Material:
Aluminum
Maximum Operating Speed (RPM):
10000
Shaft / Bore Material:
Stainless Steel
Shaft / Bore Size (mm):
9.525
Shaft Type:
Shafted
Termination:
10 ft Watertight Cable
Duty Cycle:
45-55%
Incremental Signal Format:
Format A: A Leads B CCW
Incremental Signals:
A, B
Input Voltage:
5-26 VDC
Line Driver Type:
7273
Maximum Frequency Response (KHz):
100
Output Signal:
Open Collector w/ 2.2K Ohm
Resolution (PPR):
1024
Reverse Polarity Protection:
Yes
Short Circuit Protection:
Yes
Hazardous Area Rating:
[None]
Hazardous Area Rating Certification:
[None]
Housing Protection Level:
IP66
Humidity Non-Condensing (%):
98
Maximum Operating Temperature (°C):
70
Maximum Storage Temperature (°C):
90
Minimum Operating Temperature (°C):
0
Minimum Storage Temperature (°C):
-40
Noise Immunity Testing Specification:
EN61326-1
Shock Resistance:
50G, 11msec
Vibration Resistance:
20G, 5-2000Hz
Datasheet:
View
