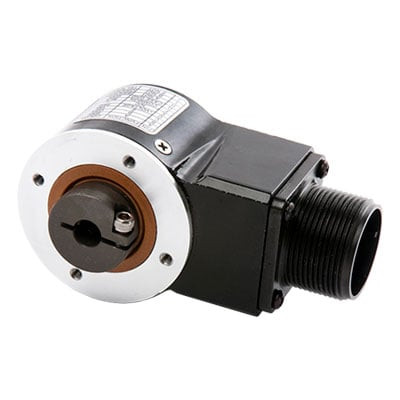

Dynapar HS20018083447PS HS20 Sealed Hollow-shaft Encoder

(No reviews yet) Write a Review

Write a Review

Dynapar

Dynapar HS20018083447PS HS20 Sealed Hollow-shaft Encoder

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HS20018083447PS

UPC:

MPN:

HS20018083447PS

Condition:

New

Series:

HS20

Average leadtime:

5 Business Days

Feedback Type:

Incremental

Technology Sensing Type:

Optical

Weight (Pounds):

3

Connection Location:

Radial

Connection Type:

Connector with Mating Connector

Disk Material:

Aluminum

Fixing:

Slotted Hole for bolt on 1.87" to 2.95" radius

Flange Material:

Aluminum

Housing Material:

Aluminum

Maximum Operating Speed (RPM):

6000

Shaft / Bore Material:

Aluminum

Shaft / Bore Size (mm):

15.875

Shaft Type:

Hollow Shaft

Starting Torque (Ncm):

7.06

Termination:

10 Pin + Mating

Duty Cycle:

45-55%

Incremental Signals:

A, A', B, B', Z, Z'

Input Voltage:

5-26 VDC

Line Driver Type:

7272

Maximum Frequency Response (KHz):

100

Output Signal:

5-26 VDC

Resolution (PPR):

180

Reverse Polarity Protection:

Yes

Short Circuit Protection:

Yes

Hazardous Area Rating:

[None]

Hazardous Area Rating Certification:

[None]

Housing Protection Level:

IP65

Humidity Non-Condensing (%):

98

Maximum Operating Temperature (°C):

70

Maximum Storage Temperature (°C):

85

Minimum Operating Temperature (°C):

0

Minimum Storage Temperature (°C):

-40

Noise Immunity Testing Specification:

EN61326-1

Shock Resistance:

50G, 11msec

Vibration Resistance:

2.5G, 5-2000Hz

Datasheet:

View
