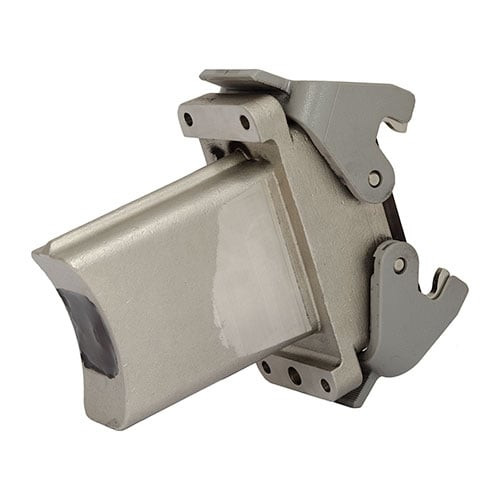

Dynapar NSRT1024ZCSEN NextGen NorthStar RIM Tach Sensor Module
Dynapar
$2,187.00
Field replacement sensor modules for Next Generation NorthStar RIM Tach magnetic encoder families
- Compatible Series:
- RT8, RT1, & RT6 Models
- PPR:
- 1024
- Index:
- Index Signal Output
- Operating Temperature:
- -40°C to +100°C
- Connector Type:
- 10 pin industrial duty latching, sealed NEMA 4 &12, IP65. Optional MS3102 10 pin, Pigtail Cable, or Latching connector on cable extension
- Sensor Size:
- Standard Sensor
- Input Power Requirements:
- 5-26 VDC, 95mA (typical per sensor module, plus line driver load)
- Output Signals:
- IC-WE Differential Line Driver: 150mA, sink or source
- Number of Output Modules:
- Single or Dual
