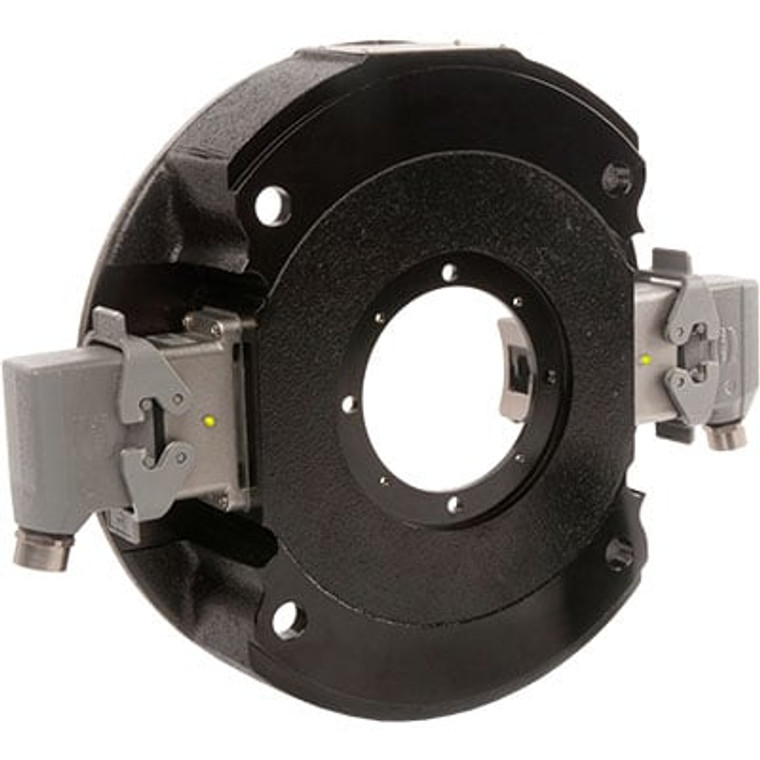

Dynapar RT11024LV191C NorthStar RIM Tach 1250 Digital Tachometer
Dynapar
$4,911.00
The NorthStar brand RIM Tach 1250 digital tachometer provides position and velocity feedback from both AC & DC electric motors, providing precise, reliable speed signals for many monitoring and control applications.
- Series:
- RT1
- Average leadtime:
- 10 Business Days
- Feedback Type:
- Incremental
- Mounting Configuration:
- NEMA 8.5" 180 C-Face
- Technology Sensing Type:
- Magnetic - Bearingless
- Weight (Pounds):
- 57
- Connection Location:
- Radial
- Connection Type:
- Connector
- Housing Material:
- Cast Iron
- Maximum Operating Speed (RPM):
- 7000
- Shaft / Bore Material:
- Aluminum & Stainless Steel
- Shaft / Bore Size (mm):
- 73.025
- Shaft Type:
- Hollow Shaft
- Termination:
- Latching Industrial Connector w/ 1/2" NPT
- Duty Cycle:
- 35-65%
- Incremental Signals:
- A, A', B, B'
- Input Voltage:
- 5-26 VDC
- Line Driver Type:
- IC-WE
- Maximum Frequency Response (KHz):
- 180
- Output Signal:
- 5-26 VDC
- Resolution (PPR):
- 1024
- Reverse Polarity Protection:
- Yes
- Short Circuit Protection:
- Yes
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Humidity Non-Condensing (%):
- 98
- Maximum Operating Temperature (°C):
- 100
- Maximum Storage Temperature (°C):
- 125
- Minimum Operating Temperature (°C):
- -40
- Minimum Storage Temperature (°C):
- -40
- Noise Immunity Testing Specification:
- EN61326-1
- Shock Resistance:
- 200G min.
- Vibration Resistance:
- 18G, 5-2000Hz
- Datasheet:
- View
