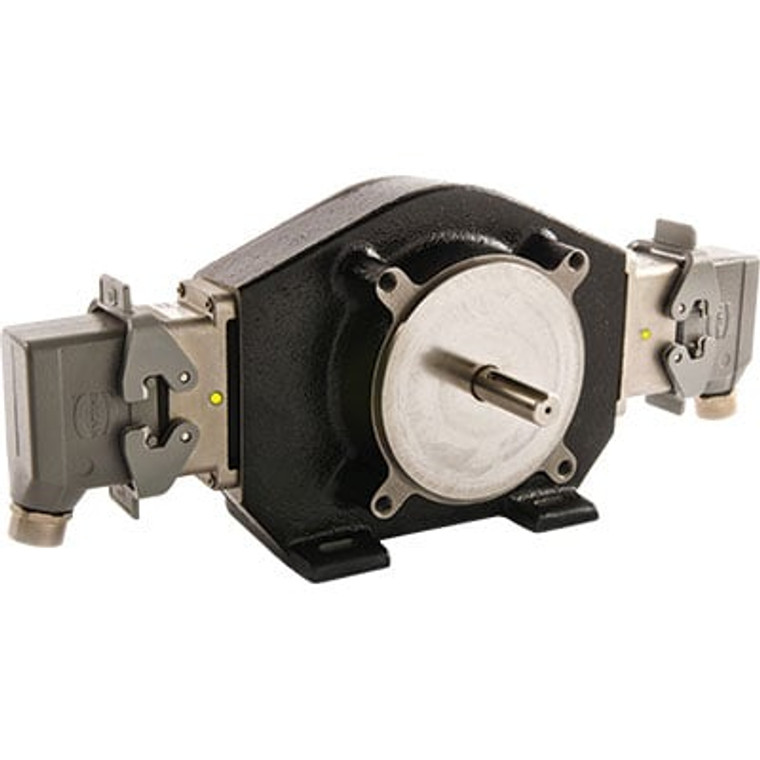

Dynapar RT61200LD1C NorthStar RIM Tach 6200 NexGen Encoder
Dynapar
$4,986.00
The Northstar brand RIM Tach 6200 NexGen Series provides precise and reliable position and velocity feedback from electric motors in heavy duty environments and tough vector-motor applications. It delivers superior ease-of-installation with a generous axial play of up to 0.50 inches and does not require any precision tools or measurements. The new design features stainless steel sensor modules, a ductile cast iron housing, foot-mounted or 56 C-face mounting ideal for "Flower Pot" or belt drive applications and extra heavy duty bearings for a longer encoder life cycle. The sensor modules use a new rugged magnetic technology that delivers a 70 thousandths air gap, the largest sensing gap in the industry. This encoder also comes with a convenient diagnostic LED to provide visual status of encoder functionality.
- Series:
- RT6
- Average leadtime:
- 10 Business Days
- Feedback Type:
- Incremental
- Mounting Configuration:
- NEMA 4.5" 56 C-Face & Foot Mount
- Technology Sensing Type:
- Magnetic
- Weight (Pounds):
- 29
- Connection Location:
- Radial
- Connection Type:
- Connector with Mating Connector
- Housing Material:
- Cast Iron/Stainless Steel
- Maximum Operating Speed (RPM):
- 7000
- Shaft / Bore Material:
- Hi- Strength Steel
- Shaft / Bore Size (mm):
- 15.875
- Shaft Loading Axial (mm):
- 50
- Shaft Loading Radial (mm):
- 50
- Shaft Type:
- Shafted
- Termination:
- Latching Industrial Connector w/ 1/2" NPT
- Duty Cycle:
- 35-65%
- Incremental Signals:
- A, A', B, B'
- Input Voltage:
- 5-26 VDC
- Line Driver Type:
- IC-WE
- Maximum Frequency Response (KHz):
- 180
- Output Signal:
- 5-26 VDC
- Resolution (PPR):
- 1200
- Reverse Polarity Protection:
- Yes
- Short Circuit Protection:
- Yes
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Humidity Non-Condensing (%):
- 98
- Maximum Operating Temperature (°C):
- 100
- Maximum Storage Temperature (°C):
- 120
- Minimum Operating Temperature (°C):
- -40
- Minimum Storage Temperature (°C):
- -40
- Noise Immunity Testing Specification:
- EN61326-1
- Shock Resistance:
- 30G Min
- Vibration Resistance:
- 18G, 5-2000Hz
