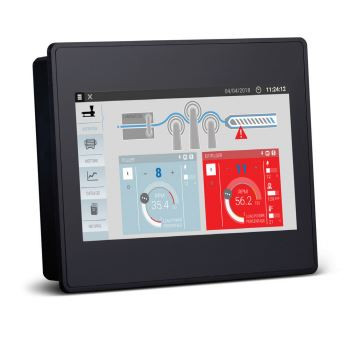

EXOR eSMART07M Basic HMI panel 7 inch display ATEX and UL approvals
Exor
$853.53
Tariffs IncludedThe price shown includes all applicable U.S. import tariffs on this EXOR product - no surprise duties or added fees at checkout.
The eSMART series of products integrates the powerful JMobile software within a robust design, focusing on essential components to create a leading product in its class. Despite being stripped down, it maintains an IP66 protection rating for the front, making it suitable for hazardous environments. The eSMART series is elegantly designed and offers high-level functionality, including unique connectivity through JMobile, supporting a vast library of critical protocols, OPC UA standards, and pub/sub server and client. It features a resistive touchscreen, powerful CPU, high memory resources, extended voltage range, and is optimized for extremely fast operation with support for HTML5 and JavaScript.
- Display - Colors:
- 7 TFT 16:9 - 64K
- Resolution:
- 800x480, WVGA
- Brightness:
- 200 Cd/m2 typ.
- Dimming:
- Yes
- Touchscreen:
- Resistive
- CPU:
- 32-bit RISC single core - 1 GHz
- Operating System:
- Linux 3.12
- Flash:
- 4 GB
- RAM:
- 512 MB
- RTC, RTC Back-up, Buzzer:
- Yes
- Ethernet port:
- 1 (port 0 - 10/100)
- USB port:
- 1 (Host v. 2.0, max. 500 mA)
- Serial port:
- 1 (RS-232, RS-485, RS-422, software configurable)
- SD card:
- No
- Expansion:
- No
- Power supply:
- 24 Vdc (10 to 32 Vdc)
- Current Consumption:
- 0.3 A at 24 Vdc (max.)
- Input Protection:
- Automatic
- Battery:
- Yes (Supercapacitor)
- Operating Temp:
- 0 to 50 °C (vertical installation)
- Storage Temp:
- -20°C to +70°C
- Operating / Storage Humidity:
- 5-85% RH, non condensing
- Protection Class:
- IP66 (front), IP20 (rear) Type: 2, 4X
- Faceplate LxH:
- 187x147 mm (7.36x5.79)"
- Cutout AxB:
- 176x136 mm (6.93x5.35)"
- Depth D+T:
- 29+5 mm (1.14+0.19)
- Weight:
- Approx 0.6 Kg
- CE:
- Electromagnetic Compatibility Directive 2014/30/EU (EMC)
- ATEX:
- Zone 2: II 3 G Ex ic ec IIC T6 Gc
- UL:
- cULus: UL508
- UL:
- cULus: Class 1 Div 2
- DNV-GL:
- Yes
- EU RO MR:
- Yes
- RCM:
- Yes
- Technical Documents:
- View
