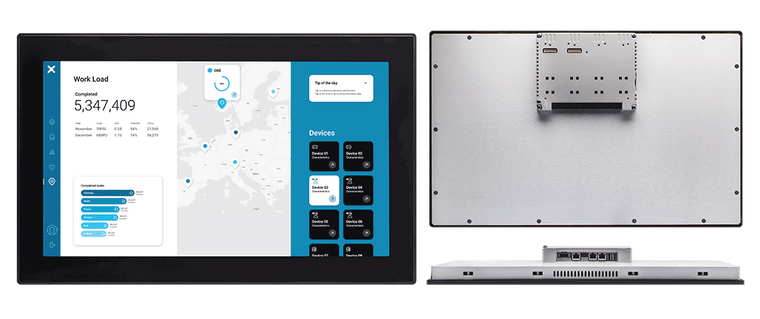

Exor eX721M HMI Controller 21 inch Multitouch
Exor
$6,080.00
The eX721M delivers maximum visualization real estate with its impressive 21.5-inch Full HD display (1920x1080) featuring 16M colors and multitouch capability. The large projected capacitive true glass touchscreen provides exceptional clarity and intuitive operation for the most demanding visualization requirements. Powered by a high-performance 64-bit quad-core 1.6 GHz processor with 8GB Flash and 2GB RAM, it handles complex automation applications effortlessly. Three Ethernet ports (1x Gigabit, 2x 10/100) enable sophisticated networking topologies and redundant communications. Two USB ports and RS-232/422/485 serial connectivity ensure comprehensive device integration. Two expansion slots support plug-in modules for additional protocols, wireless, and I/O. The robust metal construction with IP65 front protection withstands harsh industrial conditions. ATEX Zone 2/22, IECEx, cULus Class I Div 2, and DNV certifications make it suitable for hazardous and marine environments. JMobile runtime enables rapid application development. Ideal for central control rooms, comprehensive process monitoring, detailed production dashboards, and applications requiring maximum screen space for complex data visualization.
- Display - Colors:
- 21,5 TFT LED - 16M
- Resolution:
- 1920x1080, full HD
- Brightness:
- 300 cd/m2
- Dimming:
- Yes
- Touchscreen:
- True Glass Projected Capacitive, Multitouch
- CPU:
- 64-bit RISC quad core - 1.6 GHz
- Operating System:
- Linux
- Flash:
- 8 GB
- RAM:
- 2 GB
- FRAM:
- 64 KB
- RT-Clock, RTCBack-up, Buzzer:
- Yes
- Ethernet port:
- 3 (port 0 - 10/100/1000, port 1 - 10/100, port 2 - 10/100)
- USB port:
- 2 (Host V2.0, max. 500 mA)
- Serial port:
- 1 (RS-232, RS-485, RS-422, software configurable). Max 3 serial ports using plug-in modules.
- SD card:
- Yes
- Expansion:
- 2 slot for plug in modules
- Power supply:
- 24 Vdc (10 to 32 Vdc)
- Current Consumption:
- 1.7 A at 24 Vdc (max.)
- Input Protection:
- Electronic
- Battery:
- Rechargeable Lithium battery, not user-replaceable
- Operating Temperature:
- -20° to +60 °C (vertical installation). Plug-in and USB devices may limit max temperature to +50 °C
- Storage Temperature:
- -20°C to +70°C
- Operating / Storage Humidity:
- 5-85% RH, non condensing
- Protection Class:
- IP66 (front), IP20 (rear) - Type: 12, 4X
- Faceplate LxH:
- 552x347 mm (21,7x13,66)
- Cutout AxB:
- 541x336 mm
- Depth D+T:
- 56+8.5 mm
- Weight:
- 6.1 Kg
- CE:
- Electromagnetic Compatibility Directive 2014/30/EU (EMC)
- ATEX:
- Zone 2/22: II 3 G Ex ec IIC T5 T4 Gc, II 3 D Ex tc IIIC T95°C Dc | -20°C ? Tamb ? +60°C or 0°C ? Tamb ? +50°C
- IECEx:
- Zone 2/22: Ex ec IIC T5 T4 Gc, Ex tc IIIC T95°C Dc | -20°C ? Tamb ? +60°C or 0°C ? Tamb ? +50°C
- UL:
- cULus: UL61010-1 / UL61010-2-201
- UL:
- cULus: Class 1 Div 2
- DNV:
- Yes
- RCM:
- Yes
