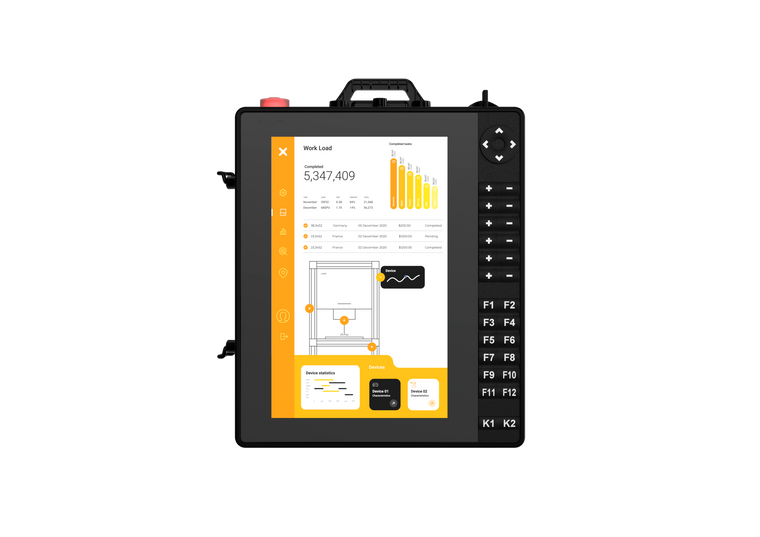

EXOR X10 Wireless Mobile HMI Handheld, 10" PCAP Multitouch, Wi-Fi Safety, Emergency Stop, 35-Button Keypad
Exor
$4,395.00
Tariffs IncludedThe price shown includes all applicable U.S. import tariffs on this EXOR product - no surprise duties or added fees at checkout.
The EXOR X10 Wireless is a safety-approved 10" handheld mobile HMI that gives operators a larger, high-visibility interface for controlling machines and mobile platforms without a trailing cable. It pairs over dual-band Wi-Fi with an EXOR Xbase Wireless base station using black channel safety communication for a peer-to-peer SIL3-rated link, and features an illuminated emergency stop lit only when connected. As the largest format in the EXOR X Series handheld line, the X10 Wireless suits complex screens where more on-screen information improves decision-making.
Key Features
- 10" TFT color display with PCAP projected-capacitive multitouch for clear, detailed visualization
- Illuminated emergency stop button - lit only when connected, eliminating false use and cabinet storage
- Integrated safety enabling switch with peer-to-peer SIL3-rated wireless safety
- Black channel safety communication over dual-band Wi-Fi (2.4 / 5 GHz)
- 35 user-programmable buttons with mechanical (tactile) feedback
- Quick-change 14.4 V / 3350 mAh battery with wireless charging and up to 8 hours of operation
- Haptic feedback (vibration) and 3D accelerometer
- EXOR no-touch pairing: one handheld can control multiple AGVs or machines
- JMobile runtime on board; real-time software updates via the base station
Technical Specifications
| Device Type | Wireless handheld mobile HMI, safety-approved |
|---|---|
| Display | 10" TFT color, PCAP multitouch |
| Connectivity | Dual-band Wi-Fi 2.4 / 5 GHz, black channel safety communication |
| Safety | Illuminated emergency stop, enabling switch, peer-to-peer SIL3 to Xbase |
| Keypad | 35 user-programmable buttons, mechanical feedback |
| Sensors | 3D accelerometer; haptic feedback (vibration) |
| Power | Quick-change battery 14.4 V / 3350 mAh; wireless charging; up to 8 h runtime |
| Input Voltage | 24 Vdc (charging/dock) |
| Input Voltage Limits | 10 to 32 Vdc |
| Operating Temperature | 0 to +55 °C vertical install (+50 °C max with plug-in modules / USB devices) |
| Storage Temperature | -20 to +70 °C |
| Relative Humidity | 5 to 85 %, non-condensing |
| Protection Rating | IP65 with battery adapter and battery (not UL evaluated) |
| Software | JMobile runtime on device; JMobile Studio for application development; Corvina IIoT cloud-ready |
| Certifications | CE, RCM, functional safety; UL 508 / UL 61010 planned |
| Country of Origin | Italy |
| Warranty | 24 months |
Applications
The larger 10" format makes the X10 Wireless ideal where operators manage data-rich screens while staying mobile and safe:
- AGV and LGV fleets and large mobile platforms
- Robotic cells and reconfigurable production lines with complex visualization
- Large machinery and plants where operators move along the equipment
- Commissioning, teaching, and diagnostics requiring detailed on-screen information
- Intralogistics and demanding plant operations needing safe, cable-free control
System & Companion Products: The X10 Wireless operates with an EXOR Xbase Wireless base station. Charge and stage batteries with the EXOR Xdock-Charger, and store the unit on the EXOR Xdock wall mounting bracket. A single X10 Wireless can be paired across multiple bases.
Frequently Asked Questions
What is the EXOR X10 Wireless?
It is a 10" wireless handheld mobile HMI in EXOR's X Series, used to monitor and control machines, AGVs, and robots over a safety-rated Wi-Fi link, with an illuminated emergency stop and a 35-button programmable keypad.
What is the difference between the X10 Wireless and the X7 Wireless?
Both share the same wireless safety architecture and keypad. The X10 has a larger 10" display for data-rich screens, while the X7's 7" format is more compact and lighter for extended single-hand use.
Does the X10 Wireless need an Xbase base station?
Yes. It pairs with an EXOR Xbase Wireless base station, which provides the hardware safety outputs wired into the machine's safety circuits. One handheld can serve multiple bases.
Is the wireless connection safe for emergency stop functions?
Yes. Emergency stop and other safety signals travel through black channel communication over dual-band Wi-Fi as a peer-to-peer SIL3-rated link between the handheld and the Xbase.
What software and cloud tools does it support?
The X10 Wireless runs the JMobile runtime, is programmed in JMobile Studio, and is Corvina IIoT cloud-ready for remote diagnostics, dashboards, and alarm management.
Automation Distribution is an authorized EXOR distributor. For pricing, lead time, configuration help, or to request the validated datasheet, contact our automation team at 1-888-600-3080.
