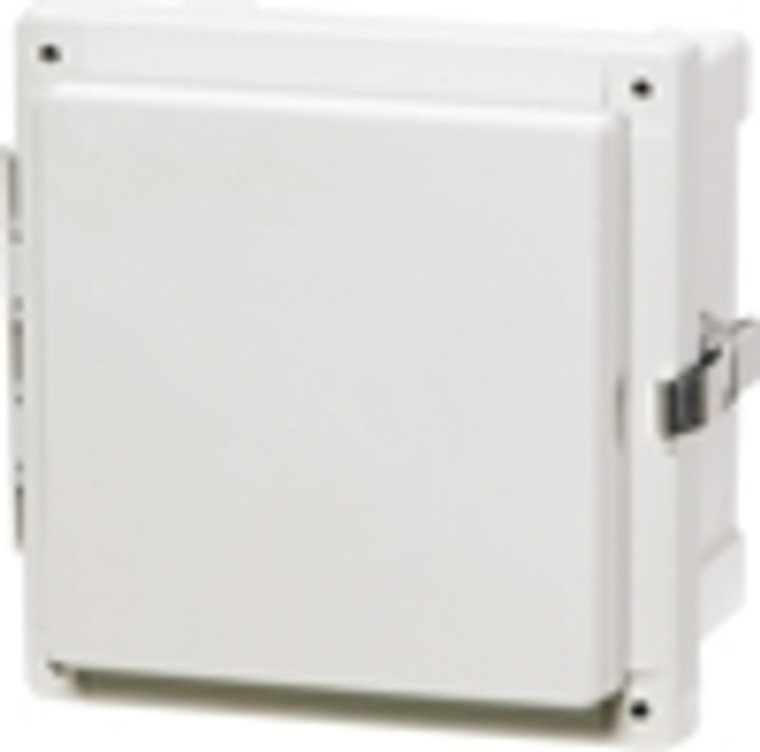

Fibox AR10106CHSSL Hinged Opaque Cover with S.S. Lockable Latch
Fibox
$204.32
Product card: AR10106CHSSL Including: Hinged cover base with 10-32 brass inserts, latched cover with formed in place PUR gasket, and stainless hinge pin. Quick release latches. (Latch options available.) Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting. Product nbr: 8561112 Description: PC Enclosure Remarks: Hinged opaque cover w/S.S. Lockable latch Package: 1 Unit: PCS Product group: EAN: 6418074066770 ETIM: EC000261 EC000261 Support items: Product card (PDF) Dimensional drawing (mm) Cad-files (registration needed) Dimensions: Length (mm): 254.0 Width (mm): 254.0 Height (mm): 152.0 Length (inch): 10.0 Width (inch): 10.0 Height (inch): 6.0 Materials: Material: Polycarbonate Base colour: RAL 7035 -light grey Cover screws material: Stainless steel Cover colour: RAL 7035 -light grey Gasket material: Polyurethane Temperatures: Temperature ??C (short term): -40 ? 140 ??C Temperature ??C (continuous): -40 ? 80 ??C Temperature ??F (short term): -40 ? 284 ??F Temperature ??F (continuous): -40 ? 175 ??F Ratings: Ingress Protection (EN 60529): IP66/IP67 Electrical insulation: Totally insulated Halogen free (DIN/VDE 0472, Part 815): 0 UV resistance: UL 508 Flammability Rating: UL 508 Glow Wire Test (IEC 695-2-1) ??C: 960 NEMA Class: UL Type 4, 4X, 6, 6P, 12 and 13 Product is connected to following catalogs: Fibox Enclosures : ARCA : AR 10106
- Dimensions (in):
- 10 x 10 x 6
- Dimensions (mm):
- 254 x 254 x 152
- Size Group:
- 10106
- Transparency:
- Opaque
- Configuration or Type:
- CHSSL
- Closure:
- Padlockable SS Latch
