Fibox AR12106SCT Clear Screw Cover
Fibox
$217.49

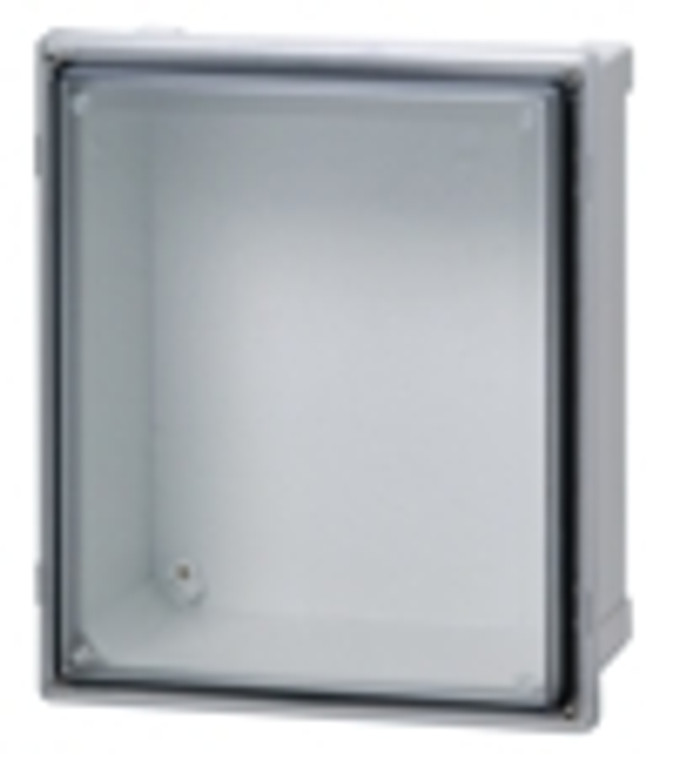

Product card: AR12106SCT Including: Screw cover base with 10-32 brass inserts, cover with formed in place PUR gasket and 4 stainless cover screws. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting. Product nbr: 8561014 Description: PC Enclosure Remarks: Transparent screw cover Package: 1 Unit: PCS Product group: EAN: 6418074066404 ETIM: EC000261 EC000261 Support items: Product card (PDF) Dimensional drawing (mm) Cad-files (registration needed) Dimensions: Length (mm): 305.0 Width (mm): 254.0 Height (mm): 152.0 Length (inch): 12.0 Width (inch): 10.0 Height (inch): 6.0 Categories: Push button enclosures Electronic and instrumentation enclosures Materials: Material: Polycarbonate Base colour: RAL 7035 -light grey Cover screws material: Stainless steel Cover colour: Clear transparent Gasket material: Polyurethane Temperatures: Temperature ??C (short term): -40 ? 140 ??C Temperature ??C (continuous): -40 ? 80 ??C Temperature ??F (short term): -40 ? 284 ??F Temperature ??F (continuous): -40 ? 175 ??F Ratings: Ingress Protection (EN 60529): IP66/IP67 Impact Resistance (EN 62262): IK07/IK08 Electrical insulation: Totally insulated Halogen free (DIN/VDE 0472, Part 815): 1 UV resistance: UL 508 Flammability Rating: UL 508 Glow Wire Test (IEC 695-2-1) ??C: 960 NEMA Class: NEMA 4, 4X, 6, 6P, 12, 13 Product is connected to following catalogs: Fibox Enclosures : ARCA : AR 12106
- Dimensions (in):
- 12 x 10 x 6
- Dimensions (mm):
- 305 x 254 x 152
- Size Group:
- 12106
- Transparency:
- Transparent
- Configuration or Type:
- SCT
- Closure:
- Screw
- Datasheet:
- View
