Harmony Electromechanical Relays
-
Schneider Electric RXM2AB2P7PVS Harmony Rxm Relay Module,2C/O 10A 230Vac Pack of 30
Schneider Electric
$727.80This miniature Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and legend. This is a 12A, 230Vac, 2 CO miniature...- SKU:
- RXM2AB2P7PVS
- Sustainable Offer Status:
- Green Premium product
- Protection Category:
- RT I
- Utilisation Coefficient:
- 0.2
- Continuous Output Current:
- 0.416666666666667
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Average Resistance:
- 15000 Ohm 20 °C +/- 15 %
- Cad Overall Width:
- 26.9 mm
- Mercury Free:
- Yes
- Drop-Out Voltage Threshold:
- >= 0.3 Uc AC
- Contacts Type And Composition:
- 2 C/O
- Safety Reliability Data:
- B10d = 100000
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Status Led:
- with
- Mechanical Durability:
- 10000000 cycles
- Environmental Disclosure:
- ENVPEP1511008EN
- Torque Value:
- 1 N.m
- China Rohs Regulation:
- X
- Net Weight:
- 0.096 kg
- Connections - Terminals:
- connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0
- Device Short Name:
- RXM
- [Ie] Rated Operational Current:
- 6 A 28 V DC) NC IEC || 6 A 250 V AC) NC IEC || 12 A 28 V DC) NO IEC || 12 A 250 V AC) NO IEC
- Electrical Durability:
- 100000 cycles resistive
- Series Name:
- Miniature
- Minimum Switching Current:
- 10 mA
- Ambient Air Temperature For Operation:
- -40-55 °C
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Range Of Product:
- Harmony Electromechanical Relays
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
- Toxic Heavy Metal Free:
- Yes
- Maximum Switching Voltage:
- 250 V
- Ambient Air Temperature For Storage:
- -40-85 °C
- Warranty:
- 18 Months
- Average Coil Consumption:
- 1.2 W, AC
- Load Current:
- 12 A 250 V AC || 12 A 28 V DC
- [Ui] Rated Insulation Voltage:
- 250 V IEC
- Product Or Component Type:
- pre-assembled plug-in relay with socket
- Contacts Material:
- AgNi
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Control Type:
- lockable test button
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reset Time:
- 20 ms
- Minimum Switching Voltage:
- 17 V
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529
- Rated Operational Voltage Limits:
- 184...253 V AC
- Standards:
- UL 508 || IEC 61810-1 || CSA C22.2 No 14 || IEC 61984
- Product Certifications:
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Cad Overall Height:
- 82.8 mm
- Reach Free Of Svhc:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Presentation:
- complete product
- Test Levels:
- level A group mounting
- Circularity Profile:
- N/A
- Rohs Exemption Information:
- Yes
- Sale Per Indivisible Quantity:
- 30
- Pollution Degree:
- 2
- [Uc] Control Circuit Voltage:
- 230 V AC 50/60 Hz
- Cad Overall Depth:
- 80.35 mm
- Maximum Switching Capacity:
- 3000 VA AC || 336 W DC
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$727.80 -

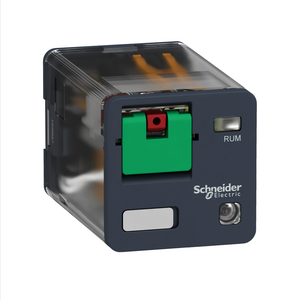

Schneider Electric RUMC32P7 3Co 10A Relay Cylind +Ltb+Led 230Vac Pack of 10
Schneider Electric
$152.50This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 230V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding...- SKU:
- RUMC32P7
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Ambient Air Temperature For Operation:
- -40-55 °C
- Product Or Component Type:
- plug-in relay
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Net Weight:
- 0.086 kg
- Electrical Durability:
- 100000 cycles resistive
- Product Certifications:
- EAC || CSA || UL
- Maximum Switching Voltage:
- 250 V IEC
- Mechanical Durability:
- 5000000 cycles
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- N/A
- Utilisation Coefficient:
- 0.2
- Device Presentation:
- complete product
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP1406038EN
- Device Short Name:
- RUM
- Contacts Type And Composition:
- 3 C/O
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- China Rohs Regulation:
- X
- Reach Free Of Svhc:
- Yes
- Rohs Exemption Information:
- Yes
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Maximum Switching Capacity:
- 2500 VA/280 W
- Status Led:
- with
- Average Coil Consumption In Va:
- 3-3 60 Hz
- [Uc] Control Circuit Voltage:
- 230 V AC 50/60 Hz
- Pollution Degree:
- 2
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Test Levels:
- level A group mounting
- Standards:
- UL 508 || IEC 61810-1 || CSA C22.2 No 14
- Series Name:
- Universal
- Ip Degree Of Protection:
- IP40
- Range Of Product:
- Harmony Electromechanical Relays
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Rated Operational Voltage Limits:
- 184...253 V AC
- Average Resistance:
- 6800 Ohm 20 °C +/- 15 %
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Safety Reliability Data:
- B10d = 100000
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Reset Time:
- 20 ms at nominal voltage
- Protection Category:
- RT I
- Contacts Material:
- AgNi
- Control Type:
- lockable test button
- Ambient Air Temperature For Storage:
- -40-85 °C
- Shape Of Pin:
- cylindrical
- Catalog:
- View
- Datasheet:
- View
$152.50 -
Schneider Electric RUMC23P7 2Co 10A Relay Cylind -Ltb+Led 230Vac Pack of 10
Schneider Electric
$190.30This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 230V AC and has 2 changeover contacts double pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding...- SKU:
- RUMC23P7
- Maximum Switching Capacity:
- 2500 VA/280 W
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10 A at 250 V AC (NO) conforming to IEC || 10 A at 28 V D
- Reach Free Of Svhc:
- Yes
- Utilisation Coefficient:
- 0.2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Average Resistance:
- 6800 Ohm 20 °C +/- 15 %
- Range Of Product:
- Harmony Electromechanical Relays
- Ip Degree Of Protection:
- IP40
- Shape Of Pin:
- cylindrical
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Average Coil Consumption In Va:
- 3-3 60 Hz
- Rohs Exemption Information:
- Yes
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Ambient Air Temperature For Operation:
- -40-55 °C
- Contacts Material:
- AgNi
- Protection Category:
- RT I
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Test Levels:
- level A group mounting
- Maximum Switching Voltage:
- 250 V IEC
- Device Short Name:
- RUM
- Ambient Air Temperature For Storage:
- -40-85 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Net Weight:
- 0.086 kg
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Mechanical Durability:
- 5000000 cycles
- Contacts Type And Composition:
- 2 C/O
- Product Certifications:
- EAC || UL || CSA
- Circularity Profile:
- N/A
- Reset Time:
- 20 ms at nominal voltage
- Status Led:
- with
- Electrical Durability:
- 100000 cycles resistive
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Device Presentation:
- complete product
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Standards:
- IEC 61810-1 || UL 508 || CSA C22.2 No 14
- China Rohs Regulation:
- X
- Rated Operational Voltage Limits:
- 184...253 V AC
- Product Or Component Type:
- plug-in relay
- Series Name:
- Universal
- Environmental Disclosure:
- ENVPEP1406038EN
- Safety Reliability Data:
- B10d = 100000
- Control Type:
- without lockable test button
- [Uc] Control Circuit Voltage:
- 230 V AC 50/60 Hz
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Pollution Degree:
- 3
- Sustainable Offer Status:
- Green Premium product
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Catalog:
- View
- Datasheet:
- View
$190.30 -
Schneider Electric RUMC23F7 2Co 10A Relay Cylind -Ltb+Led 120Vac Pack of 10
Schneider Electric
$126.90This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 120V AC and has 2 changeover contacts double pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding...- SKU:
- RUMC23F7
- Shape Of Pin:
- cylindrical
- Maximum Switching Capacity:
- 2500 VA/280 W
- Average Resistance:
- 1700 Ohm 20 °C +/- 15 %
- China Rohs Regulation:
- X
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Device Presentation:
- complete product
- Reset Time:
- 20 ms at nominal voltage
- Rated Operational Voltage Limits:
- 96...132 V AC
- Average Coil Consumption In Va:
- 3-3 60 Hz
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Contacts Material:
- AgNi
- Pollution Degree:
- 3
- Mechanical Durability:
- 5000000 cycles
- Contacts Type And Composition:
- 2 C/O
- Reach Free Of Svhc:
- Yes
- Ambient Air Temperature For Storage:
- -40-85 °C
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Safety Reliability Data:
- B10d = 100000
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Ambient Air Temperature For Operation:
- -40-55 °C
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Device Short Name:
- RUM
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- plug-in relay
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Utilisation Coefficient:
- 0.2
- Range Of Product:
- Harmony Electromechanical Relays
- Circularity Profile:
- N/A
- Status Led:
- with
- Series Name:
- Universal
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Environmental Disclosure:
- ENVPEP1406038EN
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- [Uc] Control Circuit Voltage:
- 120 V AC 50/60 Hz
- Protection Category:
- RT I
- Electrical Durability:
- 100000 cycles resistive
- Ip Degree Of Protection:
- IP40
- Maximum Switching Voltage:
- 250 V IEC
- Test Levels:
- level A group mounting
- Net Weight:
- 0.086 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Control Type:
- without lockable test button
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Product Certifications:
- CSA || EAC || UL
- Rohs Exemption Information:
- Yes
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10 A at 250 V AC (NO) conforming to IEC || 10 A at 28 V D
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Catalog:
- View
- Datasheet:
- View
$126.90 -
Schneider Electric RUMF33FD 3Co 10A Relay Faston -Ltb+Led 110Vdc Pack of 10
Schneider Electric
$141.50This Harmony RUM universal plug-in relay uses flat pins, has a control coil voltage of 110V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It...- SKU:
- RUMF33FD
- Circularity Profile:
- N/A
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Device Presentation:
- complete product
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Average Resistance:
- 7300 Ohm 20 °C +/- 15 %
- Net Weight:
- 0.086 kg
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Safety Reliability Data:
- B10d = 100000
- Contacts Material:
- AgNi
- Status Led:
- with
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Series Name:
- Universal
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Test Levels:
- level A group mounting
- Control Type:
- without lockable test button
- Maximum Switching Capacity:
- 2500 VA/280 W
- Ambient Air Temperature For Storage:
- -40-85 °C
- Reset Time:
- 20 ms at nominal voltage
- Utilisation Coefficient:
- 0.2
- Product Or Component Type:
- plug-in relay
- Product Certifications:
- CSA || EAC || UL
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Environmental Disclosure:
- ENVPEP1406038EN
- Maximum Switching Voltage:
- 250 V IEC
- Range Of Product:
- Harmony Electromechanical Relays
- Device Short Name:
- RUM
- Ip Degree Of Protection:
- IP40
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- [Uc] Control Circuit Voltage:
- 110 V DC
- Contacts Type And Composition:
- 3 C/O
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
- Electrical Durability:
- 100000 cycles resistive
- Shape Of Pin:
- flat
- Ambient Air Temperature For Operation:
- -40-55 °C
- Protection Category:
- RT I
- Rohs Exemption Information:
- Yes
- Rated Operational Voltage Limits:
- 88...121 V DC
- Pollution Degree:
- 3
- Average Coil Consumption:
- 1.4 W
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Reach Free Of Svhc:
- Yes
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Mechanical Durability:
- 5000000 cycles
- Catalog:
- View
- Datasheet:
- View
$141.50 -
Schneider Electric RUMF33F7 3Co 10A Relay Faston -Ltb+Led 120Vac Pack of 10
Schneider Electric
$141.50This Harmony RUM universal plug-in relay uses flat pins, has a control coil voltage of 120V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It...- SKU:
- RUMF33F7
- Reach Free Of Svhc:
- Yes
- Product Certifications:
- CSA || UL || EAC
- Electrical Durability:
- 100000 cycles resistive
- Contacts Type And Composition:
- 3 C/O
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -40-55 °C
- Ip Degree Of Protection:
- IP40
- Standards:
- UL 508 || CSA C22.2 No 14 || IEC 61810-1
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Shape Of Pin:
- flat
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- RUM
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- China Rohs Regulation:
- X
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Device Presentation:
- complete product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Environmental Disclosure:
- ENVPEP1406038EN
- Net Weight:
- 0.086 kg
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Product Or Component Type:
- plug-in relay
- Average Coil Consumption In Va:
- 3-3 60 Hz
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Utilisation Coefficient:
- 0.2
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Safety Reliability Data:
- B10d = 100000
- Rated Operational Voltage Limits:
- 96...132 V AC
- Sustainable Offer Status:
- Green Premium product
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Mechanical Durability:
- 5000000 cycles
- Series Name:
- Universal
- [Uc] Control Circuit Voltage:
- 120 V AC 50/60 Hz
- Protection Category:
- RT I
- Circularity Profile:
- N/A
- Average Resistance:
- 1700 Ohm 20 °C +/- 15 %
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Maximum Switching Voltage:
- 250 V IEC
- Status Led:
- with
- Ambient Air Temperature For Storage:
- -40-85 °C
- Range Of Product:
- Harmony Electromechanical Relays
- Reset Time:
- 20 ms at nominal voltage
- Contacts Material:
- AgNi
- Test Levels:
- level A group mounting
- Control Type:
- without lockable test button
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
- Maximum Switching Capacity:
- 2500 VA/280 W
- Pollution Degree:
- 3
- Catalog:
- View
- Datasheet:
- View
$141.50 -
Schneider Electric RUZSC2M Separated Conn Socket For Rumc2 Pack of 10
Schneider Electric
$54.90This Harmony RUM plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RUM range." "It has a large choice of number of contacts for high rated current use with...- SKU:
- RUZSC2M
- Contacts Type And Composition:
- 2 C/O
- Width:
- 36 mm
- Product Or Component Type:
- socket
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV
- Fixing Mode:
- by screw panel) || clip-on 35 mm symmetrical DIN rail)
- Device Short Name:
- RUZ
- Range Of Product:
- Harmony Electromechanical Relays
- Warranty:
- 18 months
- Product Compatibility:
- plug-in relay RUM 2 C/O
- Sale Per Indivisible Quantity:
- 10
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-85 °C
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Ip Degree Of Protection:
- IP20 conforming to EN/IEC 60529
- China Rohs Regulation:
- X
- Overvoltage Category:
- III
- Net Weight:
- 0.095 kg
- Environmental Disclosure:
- ENVPEP1511021EN
- Contact Terminal Arrangement:
- separate
- Mercury Free:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -40-55 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Certifications:
- UL || CSA
- Pollution Degree:
- 3
- Standards:
- IEC 61984
- [Ith] Conventional Free Air Thermal Current:
- 0
- [Ue] Rated Operational Voltage:
- < 250 V
- Tightening Torque:
- < 1 N.m M3.5
- Circularity Profile:
- N/A
- Sustainable Offer Status:
- Green Premium product
- Shape Of Pin:
- cylindrical
- Toxic Heavy Metal Free:
- Yes
- Marking:
- CE
- Reach Free Of Svhc:
- Yes
- Connections - Terminals:
- connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0
- Catalog:
- View
- Datasheet:
- View
$54.90 -
Schneider Electric RPF2BJD 30A Power Relay 2C/O 12Vdc Pack of 10
Schneider Electric
$133.00This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 12V DC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount...- SKU:
- RPF2BJD
- Series Name:
- Power
- Ambient Air Temperature For Operation:
- -40-55 °C
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V UL
- Device Short Name:
- RPF
- Environmental Disclosure:
- ENVPEP130203EN
- Warranty:
- 18 months
- Cad Overall Depth:
- 39.2 mm
- Reach Free Of Svhc:
- Yes
- Circularity Profile:
- N/A
- [Ie] Rated Operational Current:
- 30 A 277 V AC) NO UL || 20 A 28 V DC) NO UL || 30 A 250 V AC) NO IEC || 25 A 28 V DC) NO IEC || 3 A 277 V AC) NC UL || 3 A 28 V DC) NC UL || 3 A 250 V AC) NC IEC || 3 A 28 V DC) NC IEC
- Electrical Durability:
- 100000 cycles resistive
- Standards:
- UL 508 || CSA C22.2 No 14 || IEC 61810-1
- Mounting Support:
- DIN rail || panel
- Shape Of Pin:
- flat
- Product Certifications:
- CE || CSA || GOST || UL
- Average Consumption:
- 1.7 W
- Product Or Component Type:
- DIN rail/panel mount relay
- Drop-Out Voltage Threshold:
- >= 0.1 Uc
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Test Levels:
- level A group mounting
- Contacts Type And Composition:
- 2 C/O
- Average Resistance:
- 86 Ohm at 20 °C +/- 10 %
- Dielectric Strength:
- 2000 V AC between poles with basic || 4000 V AC between coil and contact with reinforced || 1500 V AC between contacts with micro disconnection
- Ambient Air Temperature For Storage:
- -40-85 °C
- China Rohs Regulation:
- X
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Type:
- without lockable test button
- Maximum Switching Voltage:
- 250 V IEC
- Cad Overall Height:
- 68.5 mm
- Range Of Product:
- Harmony Electromechanical Relays
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Maximum Switching Capacity:
- 7500 VA/700 W
- Control Circuit Voltage Limits:
- 9.6...13.2 V
- Net Weight:
- 0.082 kg
- Reset Time:
- 25 ms
- Contacts Material:
- silver tin oxide
- Protection Category:
- RT II
- Sustainable Offer Status:
- Green Premium product
- Utilisation Coefficient:
- 0.1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Cad Overall Width:
- 33.7 mm
- Pollution Degree:
- 3
- Device Presentation:
- complete product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 10 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- [Ithe] Conventional Enclosed Thermal Current:
- 25 A -40-55 °C relays side by side without a gap || 30 A -40-55 °C 13 mm gap between two relays
- Minimum Switching Capacity:
- 6000 mW 500 mA / 12 V NO || 170 mW 10 mA / 6 V NC
- Mechanical Durability:
- 5000000 cycles
- [Uc] Control Circuit Voltage:
- 12 V DC
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs
- Load Current:
- 25 A 28 V DC || 30 A 250 V AC
- Safety Reliability Data:
- B10d = 100000
- Rohs Exemption Information:
- Yes
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Catalog:
- View
- Datasheet:
- View
$133.00 -
Schneider Electric RXM4GB2F7 Miniature Relay Led 4Co Low Sw 120Vac Pack of 10
Schneider Electric
$83.00RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay (gold plated contact) with current rating of 3A, control circuit voltage of 120 V AC 50/60 Hz. It also offers...- SKU:
- RXM4GB2F7
- Drop-Out Voltage Threshold:
- >= 0.15 Uc
- Contacts Type And Composition:
- 4 C/O
- Shape Of Pin:
- flat
- Net Weight:
- 0.037 kg
- Reach Free Of Svhc:
- Yes
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
- Load Current:
- 3 A 250 V AC || 3 A 28 V DC
- Control Type:
- lockable test button
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Test Levels:
- level A group mounting
- [Uc] Control Circuit Voltage:
- 120 V AC 50/60 Hz
- Contacts Material:
- gold plated bifurcated silver
- Device Presentation:
- complete product
- Ambient Air Temperature For Storage:
- -40-85 °C
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Mechanical Durability:
- 10000000 cycles
- Reset Time:
- 20 ms
- Product Certifications:
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV 1.2/50 µs
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Electrical Durability:
- 100000 cycles resistive depending on mounting position and working environment
- Range Of Product:
- Harmony Electromechanical Relays
- Average Coil Consumption In Va:
- 1.2-1.2 60 Hz
- Pollution Degree:
- 2
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -40-55 °C
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Minimum Switching Capacity:
- 15 mW 3 mA, 5 V
- Circularity Profile:
- ENVEOLI2106019EN
- Product Or Component Type:
- plug-in relay
- Rated Operational Voltage Limits:
- 96...132 V AC
- Average Consumption:
- 1.2 VA 60 Hz
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Average Resistance:
- 4430 Ohm 20 °C +/- 15 %
- Maximum Switching Capacity:
- 750 VA/84 W
- Maximum Switching Voltage:
- 250 V IEC
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP2106019EN
- [Ithe] Conventional Enclosed Thermal Current:
- 3 A -40-55 °C
- Protection Category:
- RT I
- Utilisation Coefficient:
- 0.2
- China Rohs Regulation:
- X
- [Ie] Rated Operational Current:
- 2 A 28 V DC) NO IEC || 2 A 250 V AC) NO IEC || 1 A 28 V DC) NC IEC || 1 A 250 V AC) NC IEC || 3 A 28 V DC) UL || 3 A 277 V AC) UL
- Series Name:
- Miniature
- Device Short Name:
- RXM
- Status Led:
- with
- Warranty:
- 18 months
- Rohs Exemption Information:
- Yes
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$83.00 -
Schneider Electric RXM4GB2E7 Miniature Relay Led 4C/O Low Sw 48Vac Pack of 10
Schneider Electric
$124.50RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay (gold plated contact) with current rating of 3A, control circuit voltage of 48 V AC 50/60 Hz. It also offers...- SKU:
- RXM4GB2E7
- Shape Of Pin:
- flat
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
- [Uc] Control Circuit Voltage:
- 48 V AC 50/60 Hz
- [Ithe] Conventional Enclosed Thermal Current:
- 3 A -40-55 °C
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Reset Time:
- 20 ms
- China Rohs Regulation:
- X
- Drop-Out Voltage Threshold:
- >= 0.15 Uc
- Electrical Durability:
- 100000 cycles resistive depending on mounting position and working environment
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Test Levels:
- level A group mounting
- Status Led:
- with
- Circularity Profile:
- ENVEOLI2106019EN
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV 1.2/50 µs
- Series Name:
- Miniature
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Product Or Component Type:
- plug-in relay
- Contacts Type And Composition:
- 4 C/O
- Device Presentation:
- complete product
- Load Current:
- 3 A 250 V AC || 3 A 28 V DC
- Pollution Degree:
- 2
- Ambient Air Temperature For Storage:
- -40-85 °C
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Utilisation Coefficient:
- 0.2
- Ambient Air Temperature For Operation:
- -40-55 °C
- Product Certifications:
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- [Ie] Rated Operational Current:
- 2 A 28 V DC) NO IEC || 2 A 250 V AC) NO IEC || 1 A 28 V DC) NC IEC || 1 A 250 V AC) NC IEC || 3 A 28 V DC) UL || 3 A 277 V AC) UL
- Control Type:
- lockable test button
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Minimum Switching Capacity:
- 15 mW 3 mA, 5 V
- Environmental Disclosure:
- ENVPEP2106019EN
- Net Weight:
- 0.037 kg
- Average Resistance:
- 710 Ohm 20 °C +/- 15 %
- Device Short Name:
- RXM
- Maximum Switching Voltage:
- 250 V IEC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Maximum Switching Capacity:
- 750 VA/84 W
- Mechanical Durability:
- 10000000 cycles
- Warranty:
- 18 months
- Average Consumption:
- 1.2 VA 60 Hz
- Rated Operational Voltage Limits:
- 38.4...52.8 V AC
- Contacts Material:
- gold plated bifurcated silver
- Standards:
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Protection Category:
- RT I
- Range Of Product:
- Harmony Electromechanical Relays
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Average Coil Consumption In Va:
- 1.2-1.2 60 Hz
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$124.50 -
Schneider Electric RXM4GB1F7 Miniature Relay 4C/O Low Sw 120Vac
Schneider Electric
$7.32RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay (gold plated contact) with current rating of 3A, control circuit voltage of 120 V AC 50/60 Hz. It also offers...- SKU:
- RXM4GB1F7
- [Ithe] Conventional Enclosed Thermal Current:
- 3 A -40-55 °C
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- -40-55 °C
- Test Levels:
- level A group mounting
- Device Presentation:
- complete product
- Average Resistance:
- 3630 Ohm 20 °C +/- 15 %
- China Rohs Regulation:
- X
- Product Or Component Type:
- plug-in relay
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Electrical Durability:
- 100000 cycles resistive depending on mounting position and working environment
- Load Current:
- 3 A 250 V AC || 3 A 28 V DC
- Rated Operational Voltage Limits:
- 96...132 V AC
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Series Name:
- Miniature
- Average Coil Consumption In Va:
- 1.2-1.2 60 Hz
- Environmental Disclosure:
- ENVPEP2106019EN
- Ambient Air Temperature For Storage:
- -40-85 °C
- Reach Free Of Svhc:
- Yes
- Pollution Degree:
- 2
- Rohs Exemption Information:
- Yes
- Control Type:
- lockable test button
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mechanical Durability:
- 10000000 cycles
- Contacts Type And Composition:
- 4 C/O
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shock Resistance:
- 10 gnin operation || 30 gnnot operating
- Net Weight:
- 0.037 kg
- Maximum Switching Voltage:
- 250 V IEC
- Utilisation Coefficient:
- 0.2
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Range Of Product:
- Harmony Electromechanical Relays
- Status Led:
- without
- Ip Degree Of Protection:
- IP40 conforming to IEC 60529
- Minimum Switching Capacity:
- 15 mW 3 mA, 5 V
- Drop-Out Voltage Threshold:
- >= 0.15 Uc
- Protection Category:
- RT I
- Device Short Name:
- RXM
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Shape Of Pin:
- flat
- Dielectric Strength:
- 1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact || 2000 V AC between poles
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Maximum Switching Capacity:
- 750 VA/84 W
- [Uimp] Rated Impulse Withstand Voltage:
- 2.5 kV 1.2/50 µs
- Contacts Material:
- gold plated bifurcated silver
- [Uc] Control Circuit Voltage:
- 120 V AC 50/60 Hz
- Reset Time:
- 20 ms
- Circularity Profile:
- ENVEOLI2106019EN
- [Ie] Rated Operational Current:
- 2 A 28 V DC) NO IEC || 2 A 250 V AC) NO IEC || 1 A 28 V DC) NC IEC || 1 A 250 V AC) NC IEC || 3 A 28 V DC) UL || 3 A 277 V AC) UL
- Average Consumption:
- 1.2 VA 60 Hz
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
$7.32 -
Schneider Electric RUMC32ED 3Co 10A Relay Cylind +Ltb+Led 48Vdc Pack of 10
Schneider Electric
$228.70This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 48V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications...- SKU:
- RUMC32ED
- Range Of Product:
- Harmony Electromechanical Relays
- Product Or Component Type:
- plug-in relay
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shape Of Pin:
- cylindrical
- Maximum Switching Voltage:
- 250 V IEC
- Sustainable Offer Status:
- Green Premium product
- [Uc] Control Circuit Voltage:
- 48 V DC
- Control Type:
- lockable test button
- Product Certifications:
- CSA || EAC || UL
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Environmental Disclosure:
- ENVPEP1406038EN
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Pollution Degree:
- 2
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Contacts Type And Composition:
- 3 C/O
- Status Led:
- with
- Rated Operational Voltage Limits:
- 38.4...52.8 V DC
- Series Name:
- Universal
- Utilisation Coefficient:
- 0.2
- Circularity Profile:
- N/A
- Average Resistance:
- 1800 Ohm 20 °C +/- 15 %
- Contacts Material:
- AgNi
- Reach Free Of Svhc:
- Yes
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Ambient Air Temperature For Operation:
- -40-55 °C
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Device Presentation:
- complete product
- Reset Time:
- 20 ms at nominal voltage
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Electrical Durability:
- 100000 cycles resistive
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
- Ip Degree Of Protection:
- IP40
- Net Weight:
- 0.086 kg
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Safety Reliability Data:
- B10d = 100000
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-85 °C
- Device Short Name:
- RUM
- Test Levels:
- level A group mounting
- Mechanical Durability:
- 5000000 cycles
- Standards:
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- Maximum Switching Capacity:
- 2500 VA/280 W
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Average Coil Consumption:
- 1.4 W
- Protection Category:
- RT I
- Catalog:
- View
- Datasheet:
- View
$228.70 -
Schneider Electric RUMC31E7 3Co 10A Relay Cylind +Ltb-Led 48Vac Pack of 10
Schneider Electric
$206.80This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 48V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications...- SKU:
- RUMC31E7
- Maximum Switching Capacity:
- 2500 VA/280 W
- Rated Operational Voltage Limits:
- 38.4...52.8 V AC
- Product Or Component Type:
- plug-in relay
- Mechanical Durability:
- 5000000 cycles
- Maximum Switching Voltage:
- 250 V IEC
- Safety Reliability Data:
- B10d = 100000
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- [Uc] Control Circuit Voltage:
- 48 V AC 50/60 Hz
- Status Led:
- without
- Utilisation Coefficient:
- 0.2
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Ambient Air Temperature For Operation:
- -40-55 °C
- Contacts Material:
- AgNi
- Average Resistance:
- 290 Ohm 20 °C +/- 15 %
- Shape Of Pin:
- cylindrical
- Environmental Disclosure:
- ENVPEP1406038EN
- Average Coil Consumption In Va:
- 3-3 60 Hz
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Device Presentation:
- complete product
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Sustainable Offer Status:
- Green Premium product
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
- Rohs Exemption Information:
- Yes
- Electrical Durability:
- 100000 cycles resistive
- Ip Degree Of Protection:
- IP40
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Pollution Degree:
- 2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Contacts Type And Composition:
- 3 C/O
- Protection Category:
- RT I
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Device Short Name:
- RUM
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Reset Time:
- 20 ms at nominal voltage
- Net Weight:
- 0.086 kg
- Series Name:
- Universal
- Range Of Product:
- Harmony Electromechanical Relays
- Control Type:
- lockable test button
- Test Levels:
- level A group mounting
- Product Certifications:
- UL || CSA || EAC
- China Rohs Regulation:
- X
- Circularity Profile:
- N/A
- Ambient Air Temperature For Storage:
- -40-85 °C
- Reach Free Of Svhc:
- Yes
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Catalog:
- View
- Datasheet:
- View
$206.80 -
Schneider Electric RUMC31MD 3Co 10A Relay Cylind +Ltb-Led 220Vdc Pack of 10
Schneider Electric
$137.90This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 220V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding...- SKU:
- RUMC31MD
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-85 °C
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Device Short Name:
- RUM
- Range Of Product:
- Harmony Electromechanical Relays
- Contacts Type And Composition:
- 3 C/O
- China Rohs Regulation:
- X
- Device Presentation:
- complete product
- Shape Of Pin:
- cylindrical
- Maximum Switching Voltage:
- 250 V IEC
- Protection Category:
- RT I
- [Uc] Control Circuit Voltage:
- 220 V DC
- Contacts Material:
- AgNi
- Safety Reliability Data:
- B10d = 100000
- Mechanical Durability:
- 5000000 cycles
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Pollution Degree:
- 2
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Rated Operational Voltage Limits:
- 176...242 V DC
- Sustainable Offer Status:
- Green Premium product
- Standards:
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- Status Led:
- without
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Test Levels:
- level A group mounting
- Ip Degree Of Protection:
- IP40
- Ambient Air Temperature For Operation:
- -40-55 °C
- Product Certifications:
- CSA || UL || EAC
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Circularity Profile:
- N/A
- Average Resistance:
- 37000 Ohm 20 °C +/- 15 %
- Average Coil Consumption:
- 1.4 W
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Electrical Durability:
- 100000 cycles resistive
- Maximum Switching Capacity:
- 2500 VA/280 W
- Reset Time:
- 20 ms at nominal voltage
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Utilisation Coefficient:
- 0.2
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Net Weight:
- 0.086 kg
- Control Type:
- lockable test button
- Environmental Disclosure:
- ENVPEP1406038EN
- Series Name:
- Universal
- Product Or Component Type:
- plug-in relay
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Reach Free Of Svhc:
- Yes
- Catalog:
- View
- Datasheet:
- View
$137.90 -
Schneider Electric RUMC32JD 3Co 10A Relay Cylind +Ltb+Led 12Vdc Pack of 10
Schneider Electric
$152.50This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 12V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications...- SKU:
- RUMC32JD
- Electrical Durability:
- 100000 cycles resistive
- Environmental Disclosure:
- ENVPEP1406038EN
- Pollution Degree:
- 2
- Maximum Switching Capacity:
- 2500 VA/280 W
- Average Resistance:
- 120 Ohm 20 °C +/- 15 %
- Range Of Product:
- Harmony Electromechanical Relays
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL || CSA || EAC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Maximum Switching Voltage:
- 250 V IEC
- Test Levels:
- level A group mounting
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Utilisation Coefficient:
- 0.2
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Ip Degree Of Protection:
- IP40
- Shape Of Pin:
- cylindrical
- Ambient Air Temperature For Operation:
- -40-55 °C
- Contacts Material:
- AgNi
- Circularity Profile:
- N/A
- Rated Operational Voltage Limits:
- 9.6...13.2 V DC
- Contacts Type And Composition:
- 3 C/O
- China Rohs Regulation:
- X
- Device Short Name:
- RUM
- Protection Category:
- RT I
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
- Series Name:
- Universal
- Ambient Air Temperature For Storage:
- -40-85 °C
- Average Coil Consumption:
- 1.4 W
- Status Led:
- with
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 0.086 kg
- Reach Free Of Svhc:
- Yes
- Control Type:
- lockable test button
- Device Presentation:
- complete product
- Safety Reliability Data:
- B10d = 100000
- [Uc] Control Circuit Voltage:
- 12 V DC
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Product Or Component Type:
- plug-in relay
- Reset Time:
- 20 ms at nominal voltage
- Mechanical Durability:
- 5000000 cycles
- Standards:
- IEC 61810-1 || UL 508 || CSA C22.2 No 14
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Catalog:
- View
- Datasheet:
- View
$152.50 -
Schneider Electric RUMC21JD 2Co 10A Relay Cylind +Ltb-Led 12Vdc Pack of 10
Schneider Electric
$123.20This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 12V DC and has 2 changeover contacts double pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications...- SKU:
- RUMC21JD
- Safety Reliability Data:
- B10d = 100000
- Maximum Switching Capacity:
- 2500 VA/280 W
- [Uc] Control Circuit Voltage:
- 12 V DC
- Sustainable Offer Status:
- Green Premium product
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10 A at 250 V AC (NO) conforming to IEC || 10 A at 28 V D
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Contacts Type And Composition:
- 2 C/O
- Maximum Switching Voltage:
- 250 V IEC
- Electrical Durability:
- 100000 cycles resistive
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Device Presentation:
- complete product
- Average Coil Consumption:
- 1.4 W
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP40
- Product Or Component Type:
- plug-in relay
- Protection Category:
- RT I
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Ambient Air Temperature For Operation:
- -40-55 °C
- Environmental Disclosure:
- ENVPEP1406038EN
- Product Certifications:
- UL || CSA || EAC
- Reset Time:
- 20 ms at nominal voltage
- Range Of Product:
- Harmony Electromechanical Relays
- Test Levels:
- level A group mounting
- Standards:
- UL 508 || CSA C22.2 No 14 || IEC 61810-1
- Average Resistance:
- 120 Ohm 20 °C +/- 15 %
- Series Name:
- Universal
- Ambient Air Temperature For Storage:
- -40-85 °C
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Rohs Exemption Information:
- Yes
- Control Type:
- lockable test button
- Utilisation Coefficient:
- 0.2
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Mechanical Durability:
- 5000000 cycles
- Device Short Name:
- RUM
- Circularity Profile:
- N/A
- Status Led:
- without
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Contacts Material:
- AgNi
- Shape Of Pin:
- cylindrical
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- China Rohs Regulation:
- X
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Pollution Degree:
- 3
- Reach Free Of Svhc:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Rated Operational Voltage Limits:
- 9.6...13.2 V DC
- Net Weight:
- 0.086 kg
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Catalog:
- View
- Datasheet:
- View
$123.20 -
Schneider Electric RUMC32FD 3Co 10A Relay Cylind +Ltb+Led 110Vdc Pack of 10
Schneider Electric
$152.50This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 110V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding...- SKU:
- RUMC32FD
- Pollution Degree:
- 2
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Shape Of Pin:
- cylindrical
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- [Uc] Control Circuit Voltage:
- 110 V DC
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -40-85 °C
- Protection Category:
- RT I
- Status Led:
- with
- Series Name:
- Universal
- Product Or Component Type:
- plug-in relay
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Ip Degree Of Protection:
- IP40
- Ambient Air Temperature For Operation:
- -40-55 °C
- Maximum Switching Voltage:
- 250 V IEC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
- Contacts Type And Composition:
- 3 C/O
- Control Type:
- lockable test button
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mechanical Durability:
- 5000000 cycles
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Average Coil Consumption:
- 1.4 W
- Electrical Durability:
- 100000 cycles resistive
- Standards:
- CSA C22.2 No 14 || UL 508 || IEC 61810-1
- Safety Reliability Data:
- B10d = 100000
- Utilisation Coefficient:
- 0.2
- Rated Operational Voltage Limits:
- 88...121 V DC
- Product Certifications:
- UL || EAC || CSA
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reset Time:
- 20 ms at nominal voltage
- Reach Free Of Svhc:
- Yes
- Circularity Profile:
- N/A
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Net Weight:
- 0.086 kg
- Maximum Switching Capacity:
- 2500 VA/280 W
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Range Of Product:
- Harmony Electromechanical Relays
- Device Presentation:
- complete product
- Contacts Material:
- AgNi
- Test Levels:
- level A group mounting
- Average Resistance:
- 7300 Ohm 20 °C +/- 15 %
- Environmental Disclosure:
- ENVPEP1406038EN
- Device Short Name:
- RUM
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Catalog:
- View
- Datasheet:
- View
$152.50 -
Schneider Electric RUMC31FD 3Co 10A Relay Cylind +Ltb-Led 110Vdc Pack of 10
Schneider Electric
$137.90This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 110V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding...- SKU:
- RUMC31FD
- Ambient Air Temperature For Storage:
- -40-85 °C
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Safety Reliability Data:
- B10d = 100000
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Series Name:
- Universal
- Contacts Material:
- AgNi
- Mechanical Durability:
- 5000000 cycles
- Rohs Exemption Information:
- Yes
- Control Type:
- lockable test button
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Utilisation Coefficient:
- 0.2
- Ip Degree Of Protection:
- IP40
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP1406038EN
- Maximum Switching Voltage:
- 250 V IEC
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Electrical Durability:
- 100000 cycles resistive
- Rated Operational Voltage Limits:
- 88...121 V DC
- Device Short Name:
- RUM
- Range Of Product:
- Harmony Electromechanical Relays
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Average Coil Consumption:
- 1.4 W
- Ambient Air Temperature For Operation:
- -40-55 °C
- China Rohs Regulation:
- X
- Circularity Profile:
- N/A
- Net Weight:
- 0.086 kg
- Average Resistance:
- 7300 Ohm 20 °C +/- 15 %
- Reach Free Of Svhc:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- [Uc] Control Circuit Voltage:
- 110 V DC
- Protection Category:
- RT I
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Contacts Type And Composition:
- 3 C/O
- Status Led:
- without
- Device Presentation:
- complete product
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Pollution Degree:
- 2
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
- Product Certifications:
- CSA || UL || EAC
- Maximum Switching Capacity:
- 2500 VA/280 W
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Shape Of Pin:
- cylindrical
- Test Levels:
- level A group mounting
- Product Or Component Type:
- plug-in relay
- Reset Time:
- 20 ms at nominal voltage
- Catalog:
- View
- Datasheet:
- View
$137.90 -
Schneider Electric RUMC31ND 3Co 10A Relay Cylind +Ltb-Led 60Vdc
Schneider Electric
$13.79This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 60V DC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications...- SKU:
- RUMC31ND
- Ip Degree Of Protection:
- IP40
- Net Weight:
- 0.086 kg
- Range Of Product:
- Harmony Electromechanical Relays
- Status Led:
- without
- Rohs Exemption Information:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Environmental Disclosure:
- ENVPEP1406038EN
- Ambient Air Temperature For Storage:
- -40-85 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
- China Rohs Regulation:
- X
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Test Levels:
- level A group mounting
- Contacts Material:
- AgNi
- Utilisation Coefficient:
- 0.2
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Circularity Profile:
- N/A
- Ambient Air Temperature For Operation:
- -40-55 °C
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Reach Free Of Svhc:
- Yes
- Device Presentation:
- complete product
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Product Certifications:
- CSA || UL || EAC
- Mechanical Durability:
- 5000000 cycles
- Standards:
- UL 508 || CSA C22.2 No 14 || IEC 61810-1
- Maximum Switching Capacity:
- 2500 VA/280 W
- Average Resistance:
- 2790 Ohm 20 °C +/- 15 %
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Protection Category:
- RT I
- Safety Reliability Data:
- B10d = 100000
- Series Name:
- Universal
- Average Coil Consumption:
- 1.4 W
- Shape Of Pin:
- cylindrical
- Reset Time:
- 20 ms at nominal voltage
- [Uc] Control Circuit Voltage:
- 60 V DC
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Product Or Component Type:
- plug-in relay
- Sustainable Offer Status:
- Green Premium product
- Electrical Durability:
- 100000 cycles resistive
- Pollution Degree:
- 2
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Rated Operational Voltage Limits:
- 48...66 V DC
- Maximum Switching Voltage:
- 250 V IEC
- Contacts Type And Composition:
- 3 C/O
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Control Type:
- lockable test button
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Device Short Name:
- RUM
- Catalog:
- View
- Datasheet:
- View
$13.79 -
Schneider Electric RUMC32B7 3Co 10A Relay Cylind +Ltb+Led 24Vac
Schneider Electric
$15.25This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 24V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications...- SKU:
- RUMC32B7
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Pollution Degree:
- 2
- Device Presentation:
- complete product
- Electrical Durability:
- 100000 cycles resistive
- Shock Resistance:
- 10 gn 11 ms) in operation IEC 60068-2-27 || 10 gn 11 ms) not operating IEC 60068-2-27
- Safety Reliability Data:
- B10d = 100000
- Dielectric Strength:
- 1500 V AC between contacts with micro disconnection || 2500 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Ambient Air Temperature For Operation:
- -40-55 °C
- China Rohs Regulation:
- X
- Mechanical Durability:
- 5000000 cycles
- Vibration Resistance:
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Minimum Switching Capacity:
- 170 mW 10 mA, 17 V
- Contacts Material:
- AgNi
- [Uc] Control Circuit Voltage:
- 24 V AC 50/60 Hz
- Drop-Out Voltage Threshold:
- >= 0.15 Uc AC
- Load Current:
- 10 A 250 V AC || 10 A 28 V DC
- Maximum Switching Voltage:
- 250 V IEC
- [Ie] Rated Operational Current:
- 10 A at 277 V AC conforming to UL || 10 A at 30 V DC conforming to UL || 10 A at 277 V AC (same polarity) conforming to CSA || 10 A at 30 V DC conforming to CSA || 5 A at 250 V AC (NC) conforming to IEC || 5 A at 28 V DC (NC) conforming to IEC || 10
- Range Of Product:
- Harmony Electromechanical Relays
- Utilisation Coefficient:
- 0.2
- Protection Category:
- RT I
- Rated Operational Voltage Limits:
- 19.2...26.4 V AC
- Shape Of Pin:
- cylindrical
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Average Coil Consumption In Va:
- 3-3 60 Hz
- Ip Degree Of Protection:
- IP40
- Product Certifications:
- EAC || CSA || UL
- Average Resistance:
- 72 Ohm 20 °C +/- 15 %
- Device Short Name:
- RUM
- Contacts Type And Composition:
- 3 C/O
- Ambient Air Temperature For Storage:
- -40-85 °C
- Net Weight:
- 0.086 kg
- Control Type:
- lockable test button
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV 1.2/50 µs)
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
- Environmental Disclosure:
- ENVPEP1406038EN
- Test Levels:
- level A group mounting
- Series Name:
- Universal
- Maximum Switching Capacity:
- 2500 VA/280 W
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Status Led:
- with
- Reach Free Of Svhc:
- Yes
- Product Or Component Type:
- plug-in relay
- Sustainable Offer Status:
- Green Premium product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Reset Time:
- 20 ms at nominal voltage
- Catalog:
- View
- Datasheet:
- View
$15.25
