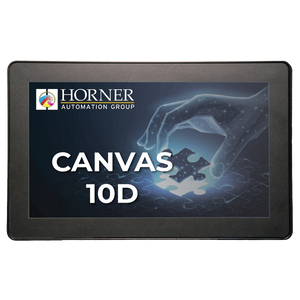

Horner Automation HE-CV-101D-00 Canvas 10D Controller 10.1, no built in IO, dual Ethernet and dual CAN

(No reviews yet) Write a Review

Write a Review

Horner Automation

Horner Automation HE-CV-101D-00 Canvas 10D Controller 10.1, no built in IO, dual Ethernet and dual CAN

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HE-CV-101D-00

UPC:

MPN:

HE-CV-101D-00

Condition:

New

Ladder Logic Memory:

2 MB

Logic Scan Rate:

0.02 mS/K

Removable Memory:

microSD

Local Comment Storage:

Yes

Floating Point Support:

Yes

AutoTune PID Capable:

Yes

Characters / Pixels:

1024X600 (300 cd/m² nits typical)

Display Technology:

10.1” LED Color

Character Height:

Selectable fonts

User-Programmable Screens/Pages:

1023

Fields or Objects per Page:

1023

Keypad:

Touchscreen

OEM Faceplate Available:

Yes

Built-in I/O Points:

22-44

SmartStix, SmartRail, SmartBlock I/O Support:

Yes, CsCAN and Ethernet

Digital Inputs / Outputs, max:

2048 / 2048

Analog Inputs / Outputs, max:

512 / 512

General Purpose Registers (words):

50000

General Purpose Internal Coils (bits):

16384 (16384 retentive)

Ethernet Support:

Standard, 2 Ports

Remote Access:

WebMI, HTTP or EnvisionRV

Remote File Access:

FTP or EnvisionFX

IIoT Support:

MQTT (Sparkplug)

Total Active Ports:

3

Serial Ports:

1 RS-232 & 1 RS-485 on first Modular Jack (MJ1/2)

PLC / Drive Protocols:

Yes

RTU / Modbus Master / Slave:

Yes

Serial ASCII In / Out:

Yes

USB C:

(PD Capable Port Required for USB-C Power) USB 2.0 (480MHz) Programming & Data

USB A (1000mA max):

Access, & Device Power

Integrated CAN Networks:

2

Maximum CAN Distance:

500m per segment, 4 segments maximum

CAN Port (Independently Isolated):

Remote I/O, Peer-to-peer Comms, Cscape

Supported CAN Protocols:

CsCAN, CANopen, DeviceNet, J1939

Ethernet Productivity:

Two 10/100 Mbps (Auto-MDX)

Ethernet Protocols:

TCP/IP, Modbus TCP, FTP, SMTP, EGD, ICMP, ASCII

Remote I/O:

SmartRail, SmartStix, SmartBlock, SmartMod, OCS-I/O

Height:

9.08" / 231 mm

Width:

11.94" / 304 mm

Depth:

2.43" / 62 mm

I/O Module Depth:

COM option adds 1.08" / 27.40 mm

Operating Temperature:

-10 to 60°C

Storage Temperature:

-20°C to +60°C

Humidity (non-condensing):

5 to 95%

Product Certifications/Approvals:

CE

Environmental Rating:

UL Type 1, 3R, 4, 4x, 12, 12k, 13
