Horner Automation HE-XPL1E3 XL6 Prime OCS Controller, 5.7", 12 DC in, 12 DC out, 2 AI

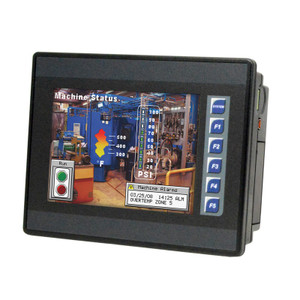

The Horner Automation HE-XPL1E3 is a 5.7-inch XL6 Prime all-in-one OCS (operator control station), combining PLC logic, HMI, I/O, and networking in a single panel-mount unit. This model provides 12 DC inputs, 12 DC outputs, 2 x 12-bit analog inputs. The XL6 Prime runs a 2 MB logic engine at a 0.02 mS/K scan on a non-volatile system-on-module, so the only battery is a coin cell for the clock.

Direct successor to the discontinued HE-EXL1E3-33. Existing Cscape applications transfer to the XL6 Prime without redevelopment.

Specifications

Built-in I/O (HE-XPL1E3)

12 DC inputs, 12 DC outputs, 2 x 12-bit analog inputs. Four DC inputs support high-speed counting and two DC outputs support PWM or pulse-train output, expandable over CsCAN, Ethernet, or Modbus with SmartBlock, SmartStix, SmartRail, and OCS-I/O.

Replacing HE-EXL1E3-33

This page replaces the discontinued Horner Automation HE-EXL1E3-33 (5.7" EXL6 series, 12 DC inputs, 12 DC outputs, 2 x 12-bit analog inputs with DeviceNet Master firmware preloaded and CsCAN removed). Horner marked that series mature; the HE-XPL1E3 is the direct upgrade with the same 5.7-inch display and identical I/O. On the legacy part, DeviceNet Master was a preloaded-firmware option; on the XL6 Prime DeviceNet Master is selectable in Cscape, so no dedicated part number is required.

Frequently asked questions

What replaces the Horner HE-EXL1E3-33?
The HE-XPL1E3 (XL6 Prime) is the direct successor, with the same display size and I/O configuration.

Will my existing Cscape program work?
Yes. XL6 Prime controllers run existing XL Series applications, which transfer without redevelopment.

What is different about the XL6 Prime?
A 2 MB logic engine, a 0.02 mS/K scan, and 100% non-volatile system-on-module memory backed only by a coin-cell clock battery.

How do I get DeviceNet Master on the Prime controller?
DeviceNet Master is selectable in Cscape on XL Prime controllers, so it no longer needs a preloaded-firmware part number.
