Horner Automation HE-EXV1E6
- SKU:
- HE-EXV1E6
- Condition:
- New
Description

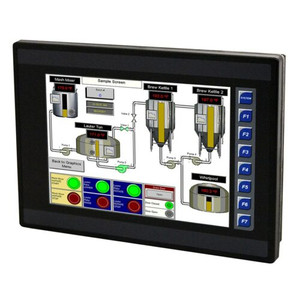

EXL10 Series OCS with DC/DC and Universal Analog I/O. Twelve (12) Digital Inputs compatible with 12V/24VDC - four (4) inputs can be used for 10kHz High Speed Counting. Twelve (12) DC Outputs - 0.5A per point - Two (2) outputs can be used as PWM/pulse outputs. Six (6) 14-bit Universal Analog Inputs selectable between Thermocouple, RTD, 0-60mV, 0-10V and 4-20mA. Four (4) 12-bit Analog Outputs selectable between 0-10V and 4-20mA. *Operating Temp (-20øC to 60øC) For quoted T/C specs (0øC to 50øC). Storage Temp (-30øC to 70øC) and humidity 5-95% RH non-condensing. Requires 2 - 4 weeks
